Colors Class#
The Colors
class provides functionality for working with colors, including converting between different color formats (hex, RGB), validating color values, and getting the type of color.
Class Documentation#
cleopatra.colors.Colors
#
A class for handling and converting between different color formats.
The Colors class provides functionality for working with different color formats including hexadecimal colors, RGB colors (normalized between 0 and 1), and RGB colors (with values between 0 and 255). It supports validation, conversion, and manipulation of colors.
Attributes:
Name | Type | Description |
---|---|---|
color_value |
Union[List[str], List[Tuple[float, float, float]]]
|
The color values stored in the class, can be hex strings or RGB tuples. |
Methods:
Name | Description |
---|---|
get_type |
Determine the type of each color (hex, rgb, rgb-normalized). |
to_hex |
Convert all colors to hexadecimal format. |
to_rgb |
Convert all colors to RGB format. |
is_valid_hex |
Check if each color is a valid hex color. |
is_valid_rgb |
Check if each color is a valid RGB color. |
Examples:
Create a Colors object with a hex color:
>>> from cleopatra.colors import Colors
>>> hex_color = Colors("#ff0000")
>>> hex_color.color_value
['#ff0000']
>>> hex_color.get_type()
['hex']
>>> rgb_norm = Colors((0.5, 0.2, 0.8))
>>> rgb_norm.color_value
[(0.5, 0.2, 0.8)]
>>> rgb_norm.get_type()
['rgb-normalized']
Create a Colors object with an RGB color (values between 0 and 255):
>>> rgb_255 = Colors((128, 51, 204))
>>> rgb_255.color_value
[(128, 51, 204)]
>>> rgb_255.get_type()
['rgb']
>>> hex_color.to_rgb() # Convert hex to RGB (normalized)
[(1.0, 0.0, 0.0)]
>>> rgb_norm.to_hex() # Convert RGB to hex
['#8033cc']
Source code in cleopatra/colors.py
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 441 442 443 444 445 446 447 448 449 450 451 452 453 454 455 456 457 458 459 460 461 462 463 464 465 466 467 468 469 470 471 472 473 474 475 476 477 478 479 480 481 482 483 484 485 486 487 488 489 490 491 492 493 494 495 496 497 498 499 500 501 502 503 504 505 506 507 508 509 510 511 512 513 514 515 516 517 518 519 520 521 522 523 524 525 526 527 528 529 530 531 532 533 534 535 536 537 538 539 540 541 542 543 544 545 546 547 548 549 550 551 552 553 554 555 556 557 558 559 560 561 562 563 564 565 566 567 568 569 570 571 572 573 574 575 576 577 578 579 580 581 582 583 584 585 586 587 588 589 590 591 592 593 594 595 596 597 598 599 600 601 602 603 604 605 606 607 608 609 610 611 612 613 614 615 616 617 618 619 620 621 622 623 624 625 626 627 628 629 630 631 632 633 634 635 636 637 638 639 640 641 642 643 644 645 646 647 648 649 650 651 652 653 654 655 656 657 658 659 660 661 662 663 664 665 666 667 668 669 670 671 672 673 674 675 676 677 678 679 680 681 682 683 684 685 686 687 688 689 690 691 692 693 694 695 696 697 698 699 700 701 702 703 704 705 706 707 708 709 710 711 712 713 714 715 716 717 718 719 720 721 722 723 724 725 726 727 728 729 730 731 732 733 734 735 736 737 738 739 740 741 742 743 744 745 746 747 748 749 750 751 752 753 754 755 756 757 758 759 760 761 762 763 |
|
color_value
property
#
Get the color values stored in the object.
This property returns the color values that were provided when initializing the Colors object or set afterwards. The values can be hex color strings, RGB tuples with values between 0-255, or normalized RGB tuples with values between 0-1.
Returns:
Type | Description |
---|---|
Union[List[str], List[Tuple[float, float, float]]]
|
A list containing the color values. Each element can be: - A hex color string (e.g., "#ff0000" or "ff0000") - An RGB tuple with values between 0-255 (e.g., (255, 0, 0)) - A normalized RGB tuple with values between 0-1 (e.g., (1.0, 0.0, 0.0)) |
Examples:
Get color values from a Colors object with hex colors:
>>> from cleopatra.colors import Colors
>>> hex_colors = Colors(["#ff0000", "#00ff00", "#0000ff"])
>>> hex_colors.color_value
['#ff0000', '#00ff00', '#0000ff']
Get color values from a Colors object with RGB colors:
Get color values from a Colors object with mixed color formats:
__init__(color_value)
#
Initialize a Colors object with the given color value(s).
Parameters:
Name | Type | Description | Default |
---|---|---|---|
color_value
|
Union[List[str], str, Tuple[float, float, float], List[Tuple[float, float, float]]]
|
The color value(s) to initialize the object with. Can be: - A single hex color string (e.g., "#ff0000" or "ff0000") - A single RGB tuple with values between 0-1 (e.g., (1.0, 0.0, 0.0)) - A single RGB tuple with values between 0-255 (e.g., (255, 0, 0)) - A list of hex color strings - A list of RGB tuples |
required |
Raises:
Type | Description |
---|---|
ValueError
|
If the color_value is not a string, tuple, or list of strings/tuples. |
Notes
- Hex colors can be provided with or without the leading "#"
- RGB tuples with float values between 0-1 are treated as normalized RGB
- RGB tuples with integer values between 0-255 are treated as standard RGB
- The class automatically detects the type of color format provided
Examples:
-
Initialize with a hex color:
-
Initialize with an RGB color (normalized, values between 0 and 1):
-
Initialize with an RGB color (values between 0 and 255):
-
Initialize with a list of colors:
Source code in cleopatra/colors.py
76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 |
|
create_from_image(path)
classmethod
#
Create a color object from an image.

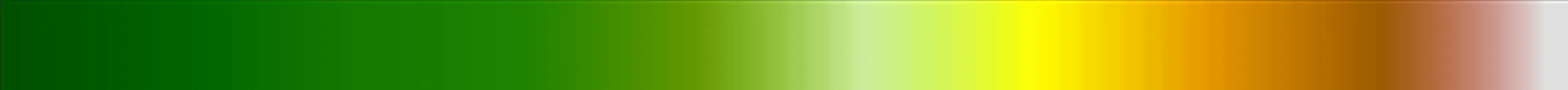

if you have an image of a color ramp, and you want to extract the colors from it, you can use this method.
Parameters:
Name | Type | Description | Default |
---|---|---|---|
path
|
str
|
The path to the image file. |
required |
Returns:
Type | Description |
---|---|
Colors
|
A color object. |
Raises:
Type | Description |
---|---|
FileNotFoundError
|
If the file does not exist. |
Examples:
>>> path = "examples/data/colors/color-ramp.png"
>>> colors = Colors.create_from_image(path)
>>> print(colors.color_value) # doctest: +SKIP
[(9, 63, 8), (8, 68, 9), (5, 78, 7), (1, 82, 3), (0, 84, 0), (0, 85, 0), (1, 83, 0), (1, 81, 0), (1, 80, 1)
Source code in cleopatra/colors.py
get_color_map(name=None)
#
Get color ramp from a color values in stored in the object.
Parameters:
Name | Type | Description | Default |
---|---|---|---|
name
|
str
|
The name of the color ramp. |
None
|
Returns:
Name | Type | Description |
---|---|---|
Colormap |
Colormap
|
A color map. |
Examples:
- Create a color object from an image and get the color ramp:
Source code in cleopatra/colors.py
get_type()
#
Determine the type of each color value.
This method analyzes each color value stored in the object and determines its type: hex, rgb (values 0-255), or rgb-normalized (values 0-1).
Returns:
Type | Description |
---|---|
List[str]
|
A list of strings indicating the type of each color value. Possible values are: - 'hex': Hexadecimal color string - 'rgb': RGB tuple with values between 0-255 - 'rgb-normalized': RGB tuple with values between 0-1 |
Notes
The method uses the following criteria to determine color types: - If the value is a string and is a valid hex color, it's classified as 'hex' - If the value is a tuple of 3 floats between 0-1, it's classified as 'rgb-normalized' - If the value is a tuple of 3 integers between 0-255, it's classified as 'rgb'
Examples:
-
Determine the type of a hex color:
-
Determine the type of an RGB color with normalized values (0-1):
-
Determine the type of an RGB color with values between 0-255:
-
Determine types of mixed color formats:
Source code in cleopatra/colors.py
is_valid_hex()
#
Check if each color value is a valid hexadecimal color.
This method checks each color value stored in the object to determine if it is a valid hexadecimal color string.
Returns:
Type | Description |
---|---|
List[bool]
|
A list of boolean values, one for each color value in the object. True indicates the color is a valid hex color, False otherwise. |
Notes
- The method uses matplotlib's is_color_like function to validate hex colors
- Both formats with and without the leading '#' are supported
- RGB tuples will return False as they are not hex colors
Examples:
Check if hex colors are valid:
>>> from cleopatra.colors import Colors
>>> hex_colors = Colors(["#ff0000", "#00ff00", "#0000ff"])
>>> hex_colors.is_valid_hex()
[True, True, True]
>>> rgb_colors = Colors([(255, 0, 0), (0, 255, 0), (0, 0, 255)])
>>> rgb_colors.is_valid_hex()
[False, False, False]
>>> mixed = Colors(["#ff0000", (0, 255, 0), "not-a-color"])
>>> mixed.is_valid_hex()
[True, False, False]
Source code in cleopatra/colors.py
is_valid_rgb()
#
Check if each color value is a valid RGB color.
This method checks each color value stored in the object to determine if it is a valid RGB color tuple (either with values between 0-255 or normalized values between 0-1).
Returns:
Type | Description |
---|---|
List[bool]
|
A list of boolean values, one for each color value in the object. True indicates the color is a valid RGB tuple, False otherwise. |
Notes
- The method checks for both RGB formats: values between 0-255 and normalized values between 0-1
- A valid RGB tuple must have exactly 3 values (R, G, B)
- Hex color strings will return False as they are not RGB tuples
Examples:
Check if RGB colors are valid:
>>> from cleopatra.colors import Colors
>>> # RGB colors (0-255 range)
>>> rgb_255 = Colors([(255, 0, 0), (0, 255, 0), (0, 0, 255)])
>>> rgb_255.is_valid_rgb()
[True, True, True]
>>> # RGB colors (normalized 0-1 range)
>>> rgb_norm = Colors([(1.0, 0.0, 0.0), (0.0, 1.0, 0.0), (0.0, 0.0, 1.0)])
>>> rgb_norm.is_valid_rgb()
[True, True, True]
>>> hex_colors = Colors(["#ff0000", "#00ff00", "#0000ff"])
>>> hex_colors.is_valid_rgb()
[False, False, False]
>>> mixed = Colors([(255, 0, 0), "#00ff00", (0.0, 0.0, 1.0)])
>>> mixed.is_valid_rgb()
[True, False, True]
Source code in cleopatra/colors.py
to_hex()
#
Convert all color values to hexadecimal format.
This method converts all color values stored in the object to hexadecimal format. RGB tuples (both normalized and 0-255 range) are converted to their hex equivalents. Hex colors remain unchanged.
Returns:
Type | Description |
---|---|
List[str]
|
A list of hexadecimal color strings. Each string is in the format '#RRGGBB'. |
Notes
- RGB tuples with values between 0-255 are first normalized to 0-1 range before conversion
- RGB tuples with values already between 0-1 are directly converted
- Existing hex colors are returned as-is
- All returned hex colors include the leading '#' character
Examples:
Convert RGB colors to hex:
>>> from cleopatra.colors import Colors
>>> # RGB colors (0-255 range)
>>> rgb_255 = Colors([(255, 0, 0), (0, 255, 0), (0, 0, 255)])
>>> rgb_255.to_hex()
['#ff0000', '#00ff00', '#0000ff']
>>> # RGB colors (normalized 0-1 range)
>>> rgb_norm = Colors([(1.0, 0.0, 0.0), (0.0, 1.0, 0.0), (0.0, 0.0, 1.0)])
>>> rgb_norm.to_hex()
['#ff0000', '#00ff00', '#0000ff']
Convert a mix of color formats to hex:
python
>>> mixed = Colors([(128, 51, 204), "#23a9dd", (0.5, 0.2, 0.8)])
>>> mixed.to_hex()
['#8033cc', '#23a9dd', '#8033cc']
Hex colors are returned as-is:
python
>>> hex_colors = Colors(["#ff0000", "#00ff00", "#0000ff"])
>>> hex_colors.to_hex()
['#ff0000', '#00ff00', '#0000ff']
```
Source code in cleopatra/colors.py
to_rgb(normalized=True)
#
Convert all color values to RGB format.
This method converts all color values stored in the object to RGB format. Hex colors are converted to their RGB equivalents. RGB colors remain unchanged but may be normalized or denormalized based on the 'normalized' parameter.
Parameters:
Name | Type | Description | Default |
---|---|---|---|
normalized
|
bool
|
Whether to return normalized RGB values (between 0 and 1) or standard RGB values (between 0 and 255), by default True. - If True, returns RGB values scaled between 0 and 1 - If False, returns RGB values scaled between 0 and 255 |
True
|
Returns:
Type | Description |
---|---|
List[Tuple[Union[int, float], Union[int, float], Union[int, float]]]
|
A list of RGB tuples. Each tuple contains three values (R, G, B). - If normalized=True, values are floats between 0.0 and 1.0 - If normalized=False, values are integers between 0 and 255 |
Examples:
-
Convert hex colors to normalized RGB (0-1 range):
-
Convert hex colors to standard RGB (0-255 range):
-
Convert RGB colors and maintain their format: There are two types of RGB coor values (0-255), and (0-1), you can get the RGB values in any format, the default is the normalized format (0-1):
>>> rgb_255 = Colors([(255, 0, 0), (0, 255, 0)]) >>> rgb_255.to_rgb(normalized=False) # Keep as 0-255 range [(255, 0, 0), (0, 255, 0)] >>> rgb_255.to_rgb(normalized=True) # Convert to 0-1 range [(1.0, 0.0, 0.0), (0.0, 1.0, 0.0)] >>> rgb_norm = Colors([(1.0, 0.0, 0.0), (0.0, 1.0, 0.0)]) >>> rgb_norm.to_rgb(normalized=True) # Keep as 0-1 range [(1.0, 0.0, 0.0), (0.0, 1.0, 0.0)] >>> rgb_norm.to_rgb(normalized=False) # Convert to 0-255 range [(255, 0, 0), (0, 255, 0)]
Convert mixed color formats:
>>> mixed = Colors(["#ff0000", (0, 255, 0), (0.0, 0.0, 1.0)])
>>> mixed.to_rgb(normalized=True)
[(1.0, 0.0, 0.0), (0.0, 1.0, 0.0), (0.0, 0.0, 1.0)]
Source code in cleopatra/colors.py
646 647 648 649 650 651 652 653 654 655 656 657 658 659 660 661 662 663 664 665 666 667 668 669 670 671 672 673 674 675 676 677 678 679 680 681 682 683 684 685 686 687 688 689 690 691 692 693 694 695 696 697 698 699 700 701 702 703 704 705 706 707 708 709 710 711 712 713 714 715 716 717 718 719 720 721 722 723 724 725 726 727 728 729 730 731 732 733 734 |
|
Examples#
Creating Color Objects#
from cleopatra.colors import Colors
# Create a Colors object with a hex color
hex_color = Colors("#FF5733")
# Create a Colors object with an RGB color (normalized)
rgb_color = Colors((1.0, 0.34, 0.2))
# Create a Colors object with an RGB color (0-255)
rgb_255_color = Colors((255, 87, 51))
# Create a Colors object with a named color
named_color = Colors("red")
# Create a Colors object with a list of colors
color_list = Colors(["red", "green", "blue"])
Converting Between Color Formats#
# Convert to hex
hex_value = rgb_color.to_hex()
print(hex_value) # "#FF5733"
# Convert to RGB (normalized)
rgb_value = hex_color.to_rgb(normalized=True)
print(rgb_value) # (1.0, 0.34, 0.2)
# Convert to RGB (0-255)
rgb_255_value = hex_color.to_rgb(normalized=False)
print(rgb_255_value) # (255, 87, 51)
