Array Class

The ArrayGlyph class provides functionality for visualizing and manipulating arrays, including plotting, animating, and saving animations.

Class Documentation

cleopatra.array_glyph.ArrayGlyph

A class to handle arrays and perform various visualization operations on them.

The ArrayGlyph class provides functionality for visualizing 2D and 3D arrays with various customization options. It supports plotting single arrays, RGB arrays, and creating animations from 3D arrays.

Attributes:

Name	Type	Description
fig	Figure	The matplotlib figure object.
ax	Axes	The matplotlib axes object.
extent	List	The extent of the array [xmin, xmax, ymin, ymax].
rgb	bool	Whether the array is an RGB array.
no_elem	int	The number of elements in the array.
anim	FuncAnimation	The animation object if created.

Notes

This class provides methods for: - Plotting arrays with customizable color scales, color bars, and annotations - Creating animations from 3D arrays - Displaying point values on arrays - Customizing plot appearance

Examples:

• Create a simple array plot:

  >>> import numpy as np
  >>> from cleopatra.array_glyph import ArrayGlyph
  >>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
  >>> array_glyph = ArrayGlyph(arr)
  >>> fig, ax = array_glyph.plot()


• Create an RGB plot from a 3D array:

  >>> rgb_array = np.random.randint(0, 255, size=(3, 10, 10))
  >>> rgb_glyph = ArrayGlyph(rgb_array, rgb=[0, 1, 2])
  >>> fig, ax = rgb_glyph.plot()


• Create an animated plot from a 3D array:

  >>> time_series = np.random.randint(1, 10, size=(5, 10, 10))
  >>> time_labels = ["Frame 1", "Frame 2", "Frame 3", "Frame 4", "Frame 5"]
  >>> animated_glyph = ArrayGlyph(time_series)
  >>> anim = animated_glyph.animate(time_labels)


Source code in cleopatra/array_glyph.py

class ArrayGlyph:
    """A class to handle arrays and perform various visualization operations on them.

    The ArrayGlyph class provides functionality for visualizing 2D and 3D arrays with
    various customization options. It supports plotting single arrays, RGB arrays,
    and creating animations from 3D arrays.

    Attributes
    ----------
    fig : matplotlib.figure.Figure
        The matplotlib figure object.
    ax : matplotlib.axes.Axes
        The matplotlib axes object.
    extent : List
        The extent of the array [xmin, xmax, ymin, ymax].
    rgb : bool
        Whether the array is an RGB array.
    no_elem : int
        The number of elements in the array.
    anim : matplotlib.animation.FuncAnimation
        The animation object if created.

    Notes
    -----
    This class provides methods for:
    - Plotting arrays with customizable color scales, color bars, and annotations
    - Creating animations from 3D arrays
    - Displaying point values on arrays
    - Customizing plot appearance

    Examples
    --------
    - Create a simple array plot:
        ```python
        >>> import numpy as np
        >>> from cleopatra.array_glyph import ArrayGlyph
        >>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
        >>> array_glyph = ArrayGlyph(arr)
        >>> fig, ax = array_glyph.plot()

        ```
    - Create an RGB plot from a 3D array:
    ```python
    >>> rgb_array = np.random.randint(0, 255, size=(3, 10, 10))
    >>> rgb_glyph = ArrayGlyph(rgb_array, rgb=[0, 1, 2])
    >>> fig, ax = rgb_glyph.plot()

    ```
    - Create an animated plot from a 3D array:
    ```python
    >>> time_series = np.random.randint(1, 10, size=(5, 10, 10))
    >>> time_labels = ["Frame 1", "Frame 2", "Frame 3", "Frame 4", "Frame 5"]
    >>> animated_glyph = ArrayGlyph(time_series)
    >>> anim = animated_glyph.animate(time_labels)

    ```
    """

    def __init__(
        self,
        array: np.ndarray,
        exclude_value: List = np.nan,
        extent: List = None,
        rgb: List[int] = None,
        surface_reflectance: int = None,
        cutoff: List = None,
        ax: Axes = None,
        fig: Figure = None,
        percentile: int = None,
        **kwargs,
    ):
        """Initialize the ArrayGlyph object with an array and optional parameters.

        Parameters
        ----------
        array : np.ndarray
            The array to be visualized. Can be a 2D array for single plots or a 3D array for RGB plots or animations.
        exclude_value : List or numeric, optional
            Value(s) used to mask cells out of the domain, by default np.nan.
            Can be a single value or a list of values to exclude.
        extent : List, optional
            The extent of the array in the format [xmin, ymin, xmax, ymax], by default None.
            If provided, the array will be plotted with these spatial boundaries.
        rgb : List[int], optional
            The indices of the red, green, and blue bands in the given array, by default None.
            If provided, the array will be treated as an RGB image.
            Can be a list of three values [r, g, b], or four values if alpha band is included [r, g, b, a].
        surface_reflectance : int, optional
            Surface reflectance value for normalizing satellite data, by default None.
            Typically 10000 for Sentinel-2 data.
        cutoff : List, optional
            Clip the range of pixel values for each band, by default None.
            Takes only pixel values from 0 to the value of the cutoff and scales them back to between 0 and 1.
            Should be a list with one value per band.
        ax : matplotlib.axes.Axes, optional
            A pre-existing axes to plot on, by default None.
            If None, a new axes will be created.
        fig : matplotlib.figure.Figure, optional
            A pre-existing figure to plot on, by default None.
            If None, a new figure will be created.
        percentile : int, optional
            The percentile value to be used for scaling the array values, by default None.
            Used to enhance contrast by stretching the histogram.
        **kwargs : dict
            Additional keyword arguments for customizing the plot.
            Supported arguments include:
                figsize : tuple, optional
                    Figure size, by default (8, 8).
                vmin : float, optional
                    Minimum value for color scaling, by default min(array).
                vmax : float, optional
                    Maximum value for color scaling, by default max(array).
                title : str, optional
                    Title of the plot, by default 'Array Plot'.
                title_size : int, optional
                    Title font size, by default 15.
                cmap : str, optional
                    Colormap name, by default 'coolwarm_r'.

        Raises
        ------
        ValueError
            If an invalid keyword argument is provided.
        ValueError
            If rgb is provided but the array doesn't have enough dimensions.

        Examples
        --------
        Basic initialization with a 2D array:
        ```python
        >>> import numpy as np
        >>> from cleopatra.array_glyph import ArrayGlyph
        >>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
        >>> array_glyph = ArrayGlyph(arr)
        >>> fig, ax = array_glyph.plot()

        ```
        Initialization with custom figure size and title:
        ```python
        >>> array_glyph = ArrayGlyph(arr, figsize=(10, 8), title="Custom Array Plot")
        >>> fig, ax = array_glyph.plot()

        ```
        Initialization with RGB bands from a 3D array:
        ```python
        >>> rgb_array = np.random.randint(0, 255, size=(3, 10, 10))
        >>> rgb_glyph = ArrayGlyph(rgb_array, rgb=[0, 1, 2], surface_reflectance=255)
        >>> fig, ax = rgb_glyph.plot()

        ```
        Initialization with custom extent:
        ```python
        >>> array_glyph = ArrayGlyph(arr, extent=[0, 0, 10, 10])
        >>> fig, ax = array_glyph.plot()

        ```
        """
        self._default_options = DEFAULT_OPTIONS.copy()

        for key, val in kwargs.items():
            if key not in self.default_options.keys():
                raise ValueError(
                    f"The given keyword argument:{key} is not correct, possible parameters are,"
                    f" {DEFAULT_OPTIONS}"
                )
            else:
                self.default_options[key] = val
        # first replace the no_data_value by nan
        # convert the array to float32 to be able to replace the no data value with nan
        if exclude_value is not np.nan:
            if len(exclude_value) > 1:
                mask = np.logical_or(
                    np.isclose(array, exclude_value[0], rtol=0.001),
                    np.isclose(array, exclude_value[1], rtol=0.001),
                )
            else:
                mask = np.isclose(array, exclude_value[0], rtol=0.0000001)
            array = ma.array(array, mask=mask, dtype=array.dtype)
        else:
            array = ma.array(array)

        # convert the extent from [xmin, ymin, xmax, ymax] to [xmin, xmax, ymin, ymax] as required by matplotlib.
        if extent is not None:
            extent = [extent[0], extent[2], extent[1], extent[3]]
        self.extent = extent

        if rgb is not None:
            self.rgb = True
            # prepare to plot rgb plot only if there are three arrays
            if array.shape[0] < 3:
                raise ValueError(
                    f"To plot RGB plot the given array should have only 3 arrays, given array have "
                    f"{array.shape[0]}"
                )
            else:
                array = self.prepare_array(
                    array,
                    rgb=rgb,
                    surface_reflectance=surface_reflectance,
                    cutoff=cutoff,
                    percentile=percentile,
                )
        else:
            self.rgb = False

        self._exclude_value = exclude_value

        self._vmax = (
            np.nanmax(array) if kwargs.get("vmax") is None else kwargs.get("vmax")
        )
        self._vmin = (
            np.nanmin(array) if kwargs.get("vmin") is None else kwargs.get("vmin")
        )

        self._arr = array
        # get the tick spacing that has 10 ticks only
        self.ticks_spacing = (self._vmax - self._vmin) / 10
        shape = array.shape
        if len(shape) == 3:
            no_elem = array[0, :, :].count()
        else:
            no_elem = array.count()

        self.no_elem = no_elem

        if fig is not None:
            self.fig, self.ax = fig, ax
        else:
            self.fig = None

    @property
    def arr(self):
        """array"""
        return self._arr

    @arr.setter
    def arr(self, value):
        self._arr = value

    def prepare_array(
        self,
        array: np.ndarray,
        rgb: List[int] = None,
        surface_reflectance: int = None,
        cutoff: List = None,
        percentile: int = None,
    ) -> np.ndarray:
        """Prepare an array for RGB visualization.

        This method processes a multi-band array to create an RGB image suitable for visualization.
        It can normalize the data using either percentile-based scaling or surface reflectance values.

        Parameters
        ----------
        array : np.ndarray
            The input array containing multiple bands. For RGB visualization,
            this should be a 3D array where the first dimension represents the bands.
        rgb : List[int], optional
            The indices of the red, green, and blue bands in the given array, by default None.
            If None, assumes the order is [3, 2, 1] (common for Sentinel-2 data).
        surface_reflectance : int, optional
            Surface reflectance value for normalizing satellite data, by default None.
            Typically 10000 for Sentinel-2 data or 255 for 8-bit imagery.
            Used to scale values to the range [0, 1].
        cutoff : List, optional
            Clip the range of pixel values for each band, by default None.
            Takes only pixel values from 0 to the value of the cutoff and scales them back to between 0 and 1.
            Should be a list with one value per band.
        percentile : int, optional
            The percentile value to be used for scaling the array values, by default None.
            Used to enhance contrast by stretching the histogram.
            If provided, this takes precedence over surface_reflectance.

        Returns
        -------
        np.ndarray
            The prepared array with shape (height, width, 3) suitable for RGB visualization.
            Values are normalized to the range [0, 1].
            the rgb 3d array is converted into 2d array to be plotted using the plt.imshow function.
            a float32 array normalized between 0 and 1 using the `percentile` values or the `surface_reflectance`.
            if the `percentile` or `surface_reflectance` values are not given, the function just reorders the values
            to have the red-green-blue order.

        Raises
        ------
        ValueError
            If the array shape is incompatible with the provided RGB indices.

        Notes
        -----
            - The `prepare_array` function is called in the constructor of the `ArrayGlyph` class to prepare the array,
              so you can provide the same parameters of the `prepare_array` function to the `ArrayGlyph constructor`.
            - The prepare function moves the first axes (the channel axis) to the last axes, and then scales the array
              using the percentile values. If the percentile is not given, the function scales the array using the
              surface reflectance values. If the surface reflectance is not given, the function scales the array using
              the cutoff values. If the cutoff is not given, the function scales the array using the sentinel data

        Examples
        --------
        Prepare an array using percentile-based scaling:
            ```python
            >>> import numpy as np
            >>> from cleopatra.array_glyph import ArrayGlyph
            >>> # Create a 3-band array (e.g., satellite image)
            >>> bands = np.random.randint(0, 10000, size=(3, 100, 100))
            >>> glyph = ArrayGlyph(np.zeros((1, 1)))  # Dummy initialization
            >>> rgb_array = glyph.prepare_array(bands, rgb=[0, 1, 2], percentile=2)
            >>> rgb_array.shape
            (100, 100, 3)
            >>> np.all((0 <= rgb_array) & (rgb_array <= 1))
            np.True_

            ```
        Prepare an array using surface reflectance normalization:
            ```python
            >>> rgb_array = glyph.prepare_array(bands, rgb=[0, 1, 2], surface_reflectance=10000)
            >>> rgb_array.shape
            (100, 100, 3)
            >>> np.all((0 <= rgb_array) & (rgb_array <= 1))
            np.True_

            ```
        Prepare an array with cutoff values:
            ```python
            >>> rgb_array = glyph.prepare_array(
            ...     bands, rgb=[0, 1, 2], surface_reflectance=10000, cutoff=[5000, 5000, 5000]
            ... )
            >>> rgb_array.shape
            (100, 100, 3)
            >>> np.all((0 <= rgb_array) & (rgb_array <= 1))
            np.True_

            ```

        - Create an array and instantiate the `ArrayGlyph` class.
            ```python
            >>> import numpy as np
            >>> arr = np.random.randint(0, 255, size=(3, 5, 5)).astype(np.float32)
            >>> array_glyph = ArrayGlyph(arr)
            >>> print(array_glyph.arr.shape)
            (3, 5, 5)

            ```
        `rgb` channels:
            - Now let's use the `prepare_array` function with `rgb` channels as [0, 1, 2]. so the finction does not to
                reorder the chennels. but it just needs to move the first axis to the last axis.
                ```python
                >>> rgb_array = array_glyph.prepare_array(arr, rgb=[0, 1, 2])
                >>> print(rgb_array.shape)
                (5, 5, 3)

                ```
            - If we compare the values of the first channel in the original array with the first array in the rgb array it
                should be the same.
                ```python
                >>> np.testing.assert_equal(arr[0, :, :],rgb_array[:, :, 0])

                ```
        surface_reflectance:
            - if you provide the surface reflectance value, the function will scale the array using the surface reflectance
                value to a normalized rgb values.
                ```python
                >>> array_glyph = ArrayGlyph(arr)
                >>> rgb_array = array_glyph.prepare_array(arr, surface_reflectance=10000, rgb=[0, 1, 2])
                >>> print(rgb_array.shape)
                (5, 5, 3)

                ```
            - if you print the values of the first channel, you will find all the values are between 0 and 1.
                ```python
                >>> print(rgb_array[:, :, 0]) # doctest: +SKIP
                [[0.0195 0.02   0.0109 0.0211 0.0087]
                 [0.0112 0.0221 0.0035 0.0234 0.0141]
                 [0.0116 0.0188 0.0001 0.0176 0.    ]
                 [0.0014 0.0147 0.0043 0.0167 0.0117]
                 [0.0083 0.0139 0.0186 0.02   0.0058]]

                ```
            - With the `surface_reflectance` parameter, you can also use the `cutoff` parameter to affect values that
                are above it, by rescaling them.
                ```python
                >>> rgb_array = array_glyph.prepare_array(
                ...     arr, surface_reflectance=10000, rgb=[0, 1, 2], cutoff=[0.8, 0.8, 0.8]
                ... )
                >>> print(rgb_array[:, :, 0]) # doctest: +SKIP
                [[0.     0.     0.     0.     0.    ]
                 [1.     1.     1.     1.     1.    ]
                 [1.     1.     1.     1.     1.    ]
                 [0.0014 0.0147 0.0043 0.0167 0.0117]
                 [0.0083 0.0139 0.0186 0.02   0.0058]]

                ```
        """
        # take the rgb arrays and reorder them to have the red-green-blue, if the order is not given, assume the
        # order as sentinel data. [3, 2, 1]
        array = array[rgb].transpose(1, 2, 0)

        if percentile is not None:
            array = self.scale_percentile(array, percentile=percentile)
        elif surface_reflectance is not None:
            array = self._prepare_sentinel_rgb(
                array,
                rgb=rgb,
                surface_reflectance=surface_reflectance,
                cutoff=cutoff,
            )
        return array

    def _prepare_sentinel_rgb(
        self,
        array: np.ndarray,
        rgb: List[int] = None,
        surface_reflectance: int = 10000,
        cutoff: List = None,
    ) -> np.ndarray:
        """Prepare Sentinel satellite data for RGB visualization.

        This method specifically handles Sentinel satellite imagery by normalizing the data
        using the provided surface reflectance value and optional cutoff values.

        Parameters
        ----------
        array : np.ndarray
            The input array with shape (height, width, 3) containing RGB bands.
            This array should already be transposed from the original band-first format.
        rgb : List[int], optional
            The indices of the red, green, and blue bands in the original array, by default None.
            Used only for cutoff application.
        surface_reflectance : int, optional
            Surface reflectance value for normalizing satellite data, by default 10000.
            Sentinel-2 data typically uses 10000 as the maximum reflectance value.
            Used to scale values to the range [0, 1].
        cutoff : List, optional
            Clip the range of pixel values for each band, by default None.
            Takes only pixel values from 0 to the value of the cutoff and scales them back to between 0 and 1.
            Should be a list with one value per band.

        Returns
        -------
        np.ndarray
            The prepared array with shape (height, width, 3) suitable for RGB visualization.
            Values are normalized to the range [0, 1].

        Examples
        --------
        Prepare Sentinel-2 data with default surface reflectance:
        ```python
        >>> import numpy as np
        >>> from cleopatra.array_glyph import ArrayGlyph
        >>> # Create a simulated Sentinel-2 RGB array
        >>> rgb_data = np.random.randint(0, 10000, size=(100, 100, 3))
        >>> glyph = ArrayGlyph(np.zeros((1, 1)))  # Dummy initialization
        >>> normalized = glyph._prepare_sentinel_rgb(rgb_data)
        >>> np.all((0 <= normalized) & (normalized <= 1))
        np.True_

        ```
        Prepare Sentinel-2 data with custom cutoff values:
        ```python
        >>> cutoffs = [8000, 7000, 9000]
        >>> normalized = glyph._prepare_sentinel_rgb(rgb_data, rgb=[0, 1, 2], cutoff=cutoffs)
        >>> np.all((0 <= normalized) & (normalized <= 1))
        np.True_

        ```
        """
        array = np.clip(array / surface_reflectance, 0, 1)
        if cutoff is not None:
            array[0] = np.clip(rgb[0], 0, cutoff[0]) / cutoff[0]
            array[1] = np.clip(rgb[1], 0, cutoff[1]) / cutoff[1]
            array[2] = np.clip(rgb[2], 0, cutoff[2]) / cutoff[2]

        return array

    @staticmethod
    def scale_percentile(arr: np.ndarray, percentile: int = 1) -> np.ndarray:
        """Scale an array using percentile-based contrast stretching.

        This method enhances the contrast of an image by stretching the histogram
        based on percentile values. It calculates the lower and upper percentile values
        for each band and normalizes the data to the range [0, 1].

        Parameters
        ----------
        arr : np.ndarray
            The array to be scaled, with shape (height, width, bands).
            Typically an RGB image with 3 bands.
        percentile : int, optional
            The percentile value to be used for scaling, by default 1.
            This value determines how much of the histogram tails to exclude.
            Higher values result in more contrast stretching.
            Typical values range from 1 to 5.

        Returns
        -------
        np.ndarray
            The scaled array, normalized between 0 and 1, with the same shape as input.
            Data type is float32.

        Notes
        -----
        The method works by:
        1. Computing the lower percentile value for each band
        2. Computing the upper percentile value (100 - percentile) for each band
        3. Normalizing each band using these percentile values
        4. Clipping values to the range [0, 1]

        This is particularly useful for visualizing satellite imagery with high dynamic range.

        Examples
        --------
        Scale a single-band array:
        ```python
        >>> import numpy as np
        >>> from cleopatra.array_glyph import ArrayGlyph
        >>> # Create a test array with values between 0 and 10000
        >>> test_array = np.random.randint(0, 10000, size=(100, 100, 1))
        >>> scaled = ArrayGlyph.scale_percentile(test_array, percentile=2)
        >>> scaled.shape
        (100, 100, 1)
        >>> np.all((0 <= scaled) & (scaled <= 1))
        np.True_

        ```
        Scale an RGB array:
        ```python
        >>> rgb_array = np.random.randint(0, 10000, size=(100, 100, 3))
        >>> scaled = ArrayGlyph.scale_percentile(rgb_array, percentile=2)
        >>> scaled.shape
        (100, 100, 3)
        >>> np.all((0 <= scaled) & (scaled <= 1))
        np.True_

        ```
        Using different percentile values affects contrast:
        ```python
        >>> low_contrast = ArrayGlyph.scale_percentile(rgb_array, percentile=1)
        >>> high_contrast = ArrayGlyph.scale_percentile(rgb_array, percentile=5)
        >>> # Higher percentile typically results in higher contrast

        ```
        """
        rows, columns, bands = arr.shape
        # flatten image.
        arr = np.reshape(arr, [rows * columns, bands]).astype(np.float32)
        # lower percentile values (one value for each band).
        lower_percent = np.percentile(arr, percentile, axis=0)
        # 98 percentile values.
        upper_percent = np.percentile(arr, 100 - percentile, axis=0) - lower_percent
        # normalize the 3 bands using the percentile values for each band.
        arr = (arr - lower_percent[None, :]) / upper_percent[None, :]
        arr = np.reshape(arr, [rows, columns, bands])
        # discard outliers.
        arr = arr.clip(0, 1)

        return arr

    def __str__(self):
        """String representation of the Array object."""
        message = f"""
                    Min: {self.vmin}
                    Max: {self.vmax}
                    Exclude values: {self.exclude_value}
                    RGB: {self.rgb}
                """
        return message

    @property
    def vmin(self):
        """min value in the array"""
        return self._vmin

    @property
    def vmax(self):
        """max value in the array"""
        return self._vmax

    @property
    def exclude_value(self):
        """exclude_value"""
        return self._exclude_value

    @exclude_value.setter
    def exclude_value(self, value):
        self._exclude_value = value

    @property
    def default_options(self):
        """Default plot options"""
        return self._default_options

    @property
    def anim(self):
        """Animation function"""
        if hasattr(self, "_anim"):
            val = self._anim
        else:
            raise ValueError(
                "Please first use the function animate to create the animation object"
            )
        return val

    def create_figure_axes(self) -> Tuple[Figure, Axes]:
        """Create the figure and the axes.

        Returns
        -------
        fig: matplotlib.figure.Figure
            the created figure.
        ax: matplotlib.axes.Axes
            the created axes.
        """
        fig, ax = plt.subplots(figsize=self.default_options["figsize"])

        return fig, ax

    def get_ticks(self) -> np.ndarray:
        """get a list of ticks for the color bar"""
        ticks_spacing = self.default_options["ticks_spacing"]
        vmax = self.default_options["vmax"]
        vmin = self.default_options["vmin"]
        remainder = np.round(math.remainder(vmax, ticks_spacing), 3)
        # np.mod(vmax, ticks_spacing) gives float point error, so we use the round function.
        if remainder == 0:
            ticks = np.arange(vmin, vmax + ticks_spacing, ticks_spacing)
        else:
            try:
                ticks = np.arange(vmin, vmax + ticks_spacing, ticks_spacing)
            except ValueError:
                raise ValueError(
                    "The number of ticks exceeded the max allowed size, possible errors"
                    f" is the value of the NodataValue you entered-{self.exclude_value}"
                )
            ticks = np.append(
                ticks,
                [int(vmax / ticks_spacing) * ticks_spacing + ticks_spacing],
            )
        return ticks

    def _plot_im_get_cbar_kw(
        self, ax: Axes, arr: np.ndarray, ticks: np.ndarray
    ) -> Tuple[AxesImage, Dict[str, str]]:
        """Plot a single image and get color bar keyword arguments.

        Parameters
        ----------
        ax: [axes]
            matplotlib figure axes.
        arr: [array]
            numpy array.
        ticks: [list]
            color bar ticks.

        Returns
        -------
        im: AxesImage
            image axes.
        cbar: Dict[str,str]
            color bar keyword arguments.
        """
        color_scale = self.default_options["color_scale"]
        cmap = self.default_options["cmap"]
        # get the vmin and vmax from the tick instead of the default values.
        vmin: float = ticks[0]  # self.default_options["vmin"]
        vmax: float = ticks[-1]  # self.default_options["vmax"]

        if color_scale.lower() == "linear":
            im = ax.matshow(arr, cmap=cmap, vmin=vmin, vmax=vmax, extent=self.extent)
            cbar_kw = {"ticks": ticks}
        elif color_scale.lower() == "power":
            im = ax.matshow(
                arr,
                cmap=cmap,
                norm=colors.PowerNorm(
                    gamma=self.default_options["gamma"], vmin=vmin, vmax=vmax
                ),
                extent=self.extent,
            )
            cbar_kw = {"ticks": ticks}
        elif color_scale.lower() == "sym-lognorm":
            im = ax.matshow(
                arr,
                cmap=cmap,
                norm=colors.SymLogNorm(
                    linthresh=self.default_options["line_threshold"],
                    linscale=self.default_options["line_scale"],
                    base=np.e,
                    vmin=vmin,
                    vmax=vmax,
                ),
                extent=self.extent,
            )
            formatter = LogFormatter(10, labelOnlyBase=False)
            cbar_kw = {"ticks": ticks, "format": formatter}
        elif color_scale.lower() == "boundary-norm":
            if not self.default_options["bounds"]:
                bounds = ticks
                cbar_kw = {"ticks": ticks}
            else:
                bounds = self.default_options["bounds"]
                cbar_kw = {"ticks": self.default_options["bounds"]}
            norm = colors.BoundaryNorm(boundaries=bounds, ncolors=256)
            im = ax.matshow(arr, cmap=cmap, norm=norm, extent=self.extent)
        elif color_scale.lower() == "midpoint":
            arr = arr.filled(np.nan)
            im = ax.matshow(
                arr,
                cmap=cmap,
                norm=MidpointNormalize(
                    midpoint=self.default_options["midpoint"],
                    vmin=vmin,
                    vmax=vmax,
                ),
                extent=self.extent,
            )
            cbar_kw = {"ticks": ticks}
        else:
            raise ValueError(
                f"Invalid color scale option: {color_scale}. Use 'linear', 'power', 'power-norm',"
                "'sym-lognorm', 'boundary-norm'"
            )

        return im, cbar_kw

    def apply_colormap(self, cmap: Union[Colormap, str]) -> np.ndarray:
        """Apply a matplotlib colormap to an array.

            Create an RGB channel from the given array using the given colormap.

        Parameters
        ----------
        cmap: Colormap/str
            colormap.

        Returns
        -------
        np.ndarray: 8-bit array
            the array with the colormap applied.

        Examples
        --------
        - Create an array and instantiate the `Array` object:
        ```python
        >>> import numpy as np
        >>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
        >>> array = ArrayGlyph(arr)
        >>> rgb_array = array.apply_colormap("coolwarm_r")
        >>> print(rgb_array) # doctest: +SKIP
        [[[179   3  38]
          [221  96  76]
          [244 154 123]]
         [[244 196 173]
          [220 220 221]
          [183 207 249]]
         [[139 174 253]
          [ 96 128 232]
          [ 58  76 192]]]

        >>> print(rgb_array.dtype)
        uint8

        ```
        """
        colormap = plt.get_cmap(cmap) if isinstance(cmap, str) else cmap
        normed_data = (self.arr - self.arr.min()) / (self.arr.max() - self.arr.min())
        colored = colormap(normed_data)
        return (colored[:, :, :3] * 255).astype("uint8")

    def to_image(self, arr: np.ndarray = None) -> Image.Image:
        """Create an RGB image from an array.

            convert the array to an image.

        Parameters
        ----------
        arr: np.ndarray, default is None.
            array. if None, the array in the object will be used.

        Examples
        --------
        ```python
        >>> import numpy as np
        >>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
        >>> array = ArrayGlyph(arr)
        >>> image = array.to_image()
        >>> print(image) # doctest: +SKIP
        <PIL.Image.Image image mode=RGB size=3x3 at 0x7F5E0D2F4C40>

        ```
        """
        if arr is None:
            arr = self.arr
        # This is done to scale the values between 0 and 255
        arr = arr if arr.dtype == "uint8" else self.scale_to_rgb()
        return Image.fromarray(arr).convert("RGB")

    def scale_to_rgb(self, arr: np.ndarray = None) -> np.ndarray:
        """Create an RGB image.

        Parameters
        ----------
        arr: np.ndarray, default is None.
            array. if None, the array in the object will be used.

        Examples
        --------
        ```python
        >>> import numpy as np
        >>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
        >>> array = ArrayGlyph(arr)
        >>> rgb_array = array.scale_to_rgb()
        >>> print(rgb_array)
        [[28 56 85]
         [113 141 170]
         [198 226 255]]
        >>> print(rgb_array.dtype)
        uint8

        ```
        """
        if arr is None:
            arr = self.arr
        # This is done to scale the values between 0 and 255
        return (arr * 255 / arr.max()).astype("uint8")

    @staticmethod
    def _plot_text(
        ax: Axes, arr: np.ndarray, indices, default_options_dict: dict
    ) -> list:
        """plot values as a text in each cell.

        Parameters
        ----------
        ax:[matplotlib ax]
            matplotlib axes
        indices: [array]
            array with columns, (row, col)
        default_options_dict: Dict
            default options dictionary after updating the options.

        Returns
        -------
        list:
            list of the text object
        """
        # https://github.com/Serapieum-of-alex/cleopatra/issues/75
        # add text for the cell values
        add_text = lambda elem: ax.text(
            elem[1],
            elem[0],
            np.round(arr[elem[0], elem[1]], 2),
            ha="center",
            va="center",
            color="w",
            fontsize=default_options_dict["num_size"],
        )
        return list(map(add_text, indices))

    @staticmethod
    def _plot_point_values(ax, point_table: np.ndarray, pid_color, pid_size):
        write_points = lambda x: ax.text(
            x[2],
            x[1],
            x[0],
            ha="center",
            va="center",
            color=pid_color,
            fontsize=pid_size,
        )
        return list(map(write_points, point_table))

    def create_color_bar(self, ax: Axes, im: AxesImage, cbar_kw: dict) -> Colorbar:
        """Create Color bar.

        Parameters
        ----------
        ax: Axes
            matplotlib axes.
        im: AxesImage
            Image axes.
        cbar_kw: dict
            color bar keyword arguments.

        Returns
        -------
        Colorbar:
            colorbar object.
        """
        # im or cax is the last image added to the axes
        # im = ax.images[-1]
        cbar = ax.figure.colorbar(
            im,
            ax=ax,
            shrink=self.default_options["cbar_length"],
            orientation=self.default_options["cbar_orientation"],
            **cbar_kw,
        )
        # cbar.ax.set_ylabel(
        #     self.default_options["cbar_label"],
        #     rotation=self.default_options["cbar_label_rotation"],
        #     va=self.default_options["cbar_label_location"],
        #     fontsize=self.default_options["cbar_label_size"],
        # )
        cbar.ax.tick_params(labelsize=10)
        cbar.set_label(
            self.default_options["cbar_label"],
            fontsize=self.default_options["cbar_label_size"],
            loc=self.default_options["cbar_label_location"],
        )

        return cbar

    def plot(
        self,
        points: np.ndarray = None,
        point_color: str = "red",
        point_size: Union[int, float] = 100,
        pid_color="blue",
        pid_size: Union[int, float] = 10,
        **kwargs,
    ) -> Tuple[Figure, Axes]:
        """Plot the array with customizable visualization options.

        This method creates a visualization of the array with various customization options
        including color scales, color bars, cell value display, and point annotations.
        It supports both regular arrays and RGB arrays.

        Parameters
        ----------
        points : np.ndarray, optional
            Points to display on the array, by default None.
            Should be a 3-column array where:
            - First column: values to display for each point
            - Second column: row indices of the points in the array
            - Third column: column indices of the points in the array
        point_color : str, optional
            Color of the points, by default "red".
            Any valid matplotlib color string.
        point_size : Union[int, float], optional
            Size of the points, by default 100.
            Controls the marker size.
        pid_color : str, optional
            Color of the point value annotations, by default "blue".
            Any valid matplotlib color string.
        pid_size : Union[int, float], optional
            Size of the point value annotations, by default 10.
            Controls the font size of the annotations.
        **kwargs : dict
            Additional keyword arguments for customizing the plot.

            Plot appearance:
            ---------------
            title : str, optional
                Title of the plot, by default 'Array Plot'.
            title_size : int, optional
                Title font size, by default 15.
            cmap : str, optional
                Colormap name, by default 'coolwarm_r'.
            vmin : float, optional
                Minimum value for color scaling, by default min(array).
            vmax : float, optional
                Maximum value for color scaling, by default max(array).

            Color bar options:
            ----------------
            cbar_orientation : str, optional
                Orientation of the color bar, by default 'vertical'.
                Can be 'horizontal' or 'vertical'.
            cbar_label_rotation : float, optional
                Rotation angle of the color bar label, by default -90.
            cbar_label_location : str, optional
                Location of the color bar label, by default 'bottom'.
                Options: 'top', 'bottom', 'center', 'baseline', 'center_baseline'.
            cbar_length : float, optional
                Ratio to control the height/width of the color bar, by default 0.75.
            ticks_spacing : int, optional
                Spacing between ticks on the color bar, by default 2.
            cbar_label_size : int, optional
                Font size of the color bar label, by default 12.
            cbar_label : str, optional
                Label text for the color bar, by default 'Value'.

            Color scale options:
            ------------------
            color_scale : str, optional
                Type of color scaling to use, by default 'linear'.
                Options:
                - 'linear': Linear scale
                - 'power': Power-law normalization
                - 'sym-lognorm': Symmetrical logarithmic scale
                - 'boundary-norm': Discrete intervals based on boundaries
                - 'midpoint': Scale split at a specified midpoint
            gamma : float, optional
                Exponent for 'power' color scale, by default 0.5.
                Values < 1 emphasize lower values, values > 1 emphasize higher values.
            line_threshold : float, optional
                Threshold for 'sym-lognorm' color scale, by default 0.0001.
            line_scale : float, optional
                Scale factor for 'sym-lognorm' color scale, by default 0.001.
            bounds : List, optional
                Boundaries for 'boundary-norm' color scale, by default None.
                Defines the discrete intervals for color mapping.
            midpoint : float, optional
                Midpoint value for 'midpoint' color scale, by default 0.

            Cell value display options:
            -------------------------
            display_cell_value : bool, optional
                Whether to display the values of cells as text, by default False.
            num_size : int, optional
                Font size of the cell value text, by default 8.
            background_color_threshold : float, optional
                Threshold for cell value text color, by default None.
                If cell value > threshold, text is black; otherwise, text is white.
                If None, uses max(array)/2 as the threshold.

        Returns
        -------
        Tuple[matplotlib.figure.Figure, matplotlib.axes.Axes]
            A tuple containing:
            - fig: The matplotlib Figure object
            - ax: The matplotlib Axes object

        Raises
        ------
        ValueError
            If an invalid keyword argument is provided.

        Examples
        --------

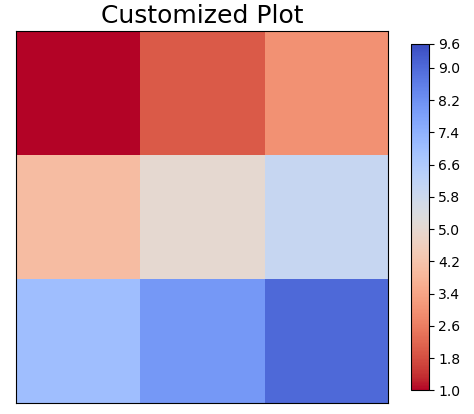

        - Basic array plot:

            ```python
            >>> import numpy as np
            >>> from cleopatra.array_glyph import ArrayGlyph
            >>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
            >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Customized Plot", title_size=18)
            >>> fig, ax = array.plot()

            ```
        ![array-plot](./../_images/array_glyph/array-plot.png)

        - Color bar customization:

            - Create an array and instantiate the `Array` object with custom options.
                ```python
                >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Customized color bar", title_size=18)
                >>> fig, ax = array.plot(
                ...     cbar_orientation="horizontal",
                ...     cbar_label_rotation=-90,
                ...     cbar_label_location="center",
                ...     cbar_length=0.7,
                ...     cbar_label_size=12,
                ...     cbar_label="Discharge m3/s",
                ...     ticks_spacing=5,
                ...     color_scale="linear",
                ...     cmap="coolwarm_r",
                ... )

                ```
                ![color-bar-customization](./../_images/array_glyph/color-bar-customization.png)

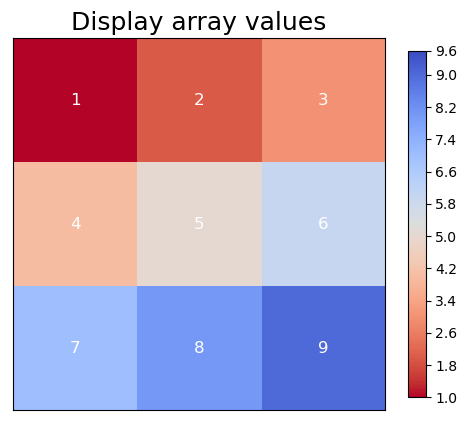

        - Display values for each cell:

            - you can display the values for each cell by using thr parameter `display_cell_value`, and customize how
                the values are displayed using the parameter `background_color_threshold` and `num_size`.

                ```python
                >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Display array values", title_size=18)
                >>> fig, ax = array.plot(
                ...     display_cell_value=True,
                ...     num_size=12
                ... )

                ```
                ![display-cell-values](./../_images/array_glyph/display-cell-values.png)

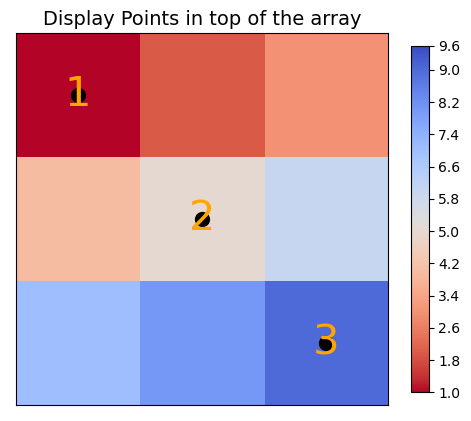

        - Plot points at specific locations in the array:

            - you can display points in specific cells in the array and also display a value for each of these points.
                The point parameter takes an array with the first column as the values to be displayed on top of the
                points, the second and third columns are the row and column index of the point in the array.
            - The `point_color` and `point_size` parameters are used to customize the appearance of the points,
                while the `pid_color` and `pid_size` parameters are used to customize the appearance of the point
                IDs/text.

                ```python
                >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Display Points", title_size=14)
                >>> points = np.array([[1, 0, 0], [2, 1, 1], [3, 2, 2]])
                >>> fig, ax = array.plot(
                ...     points=points,
                ...     point_color="black",
                ...     point_size=100,
                ...     pid_color="orange",
                ...     pid_size=30,
                ... )

                ```
                ![display-points](./../_images/array_glyph/display-points.png)

        - Color scale customization:

            - Power scale (with different gamma values).

                - The default power scale uses a gamma value of 0.5.

                    ```python
                    >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Power scale", title_size=18)
                    >>> fig, ax = array.plot(
                    ...     cbar_label="Discharge m3/s",
                    ...     color_scale="power",
                    ...     cmap="coolwarm_r",
                    ...     cbar_label_rotation=-90,
                    ... )

                    ```
                    ![power-scale](./../_images/array_glyph/power-scale.png)

                - change the gamma of 0.8 (emphasizes higher values less).

                    ```python
                    >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Power scale - gamma=0.8", title_size=18)
                    >>> fig, ax = array.plot(
                    ...     color_scale="power",
                    ...     gamma=0.8,
                    ...     cmap="coolwarm_r",
                    ...     cbar_label_rotation=-90,
                    ...     cbar_label="Discharge m3/s",
                    ... )

                    ```
                    ![power-scale-gamma-0.8](./../_images/array_glyph/power-scale-gamma-0.8.png)

                - change the gamma of 0.1 (emphasizes higher values more).

                    ```python
                    >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Power scale - gamma=0.1", title_size=18)
                    >>> fig, ax = array.plot(
                    ...     color_scale="power",
                    ...     gamma=0.1,
                    ...     cmap="coolwarm_r",
                    ...     cbar_label_rotation=-90,
                    ...     cbar_label="Discharge m3/s",
                    ... )

                    ```
                    ![power-scale-gamma-0.1](./../_images/array_glyph/power-scale-gamma-0.1.png)

            - Logarithmic scale.

                - the logarithmic scale uses to parameters `line_threshold` and `line_scale` with a default
                value if 0.0001, and 0.001 respectively.
                    ```python
                    >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Logarithmic scale", title_size=18)
                    >>> fig, ax = array.plot(
                    ...     cbar_label="Discharge m3/s",
                    ...     color_scale="sym-lognorm",
                    ...     cmap="coolwarm_r",
                    ...     cbar_label_rotation=-90,
                    ... )

                    ```
                    ![log-scale](./../_images/array_glyph/log-scale.png)

                - you can change the `line_threshold` and `line_scale` values.
                    ```python
                    >>> array = ArrayGlyph(
                    ...     arr, figsize=(6, 6), title="Logarithmic scale: Customized Parameter", title_size=12
                    ... )
                    >>> fig, ax = array.plot(
                    ...     cbar_label_rotation=-90,
                    ...     cbar_label="Discharge m3/s",
                    ...     color_scale="sym-lognorm",
                    ...     cmap="coolwarm_r",
                    ...     line_threshold=0.015,
                    ...     line_scale=0.1,
                    ... )

                    ```
                    ![log-scale](./../_images/array_glyph/log-scale-custom-parameters.png)

            - Defined boundary scale.
                ```python
                >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Defined boundary scale", title_size=18)
                >>> fig, ax = array.plot(
                ...     cbar_label_rotation=-90,
                ...     cbar_label="Discharge m3/s",
                ...     color_scale="boundary-norm",
                ...     cmap="coolwarm_r",
                ... )

                ```
                ![boundary-scale](./../_images/array_glyph/boundary-scale.png)

                - You can also define the boundaries.
                    ```python
                    >>> array = ArrayGlyph(
                    ...     arr, figsize=(6, 6), title="Defined boundary scale: defined bounds", title_size=18
                    ... )
                    >>> bounds = [0, 5, 10]
                    >>> fig, ax = array.plot(
                    ...     cbar_label_rotation=-90,
                    ...     cbar_label="Discharge m3/s",
                    ...     color_scale="boundary-norm",
                    ...     bounds=bounds,
                    ...     cmap="coolwarm_r",
                    ... )

                    ```
                    ![boundary-scale-defined-bounds](./../_images/array_glyph/boundary-scale-defined-bounds.png)

            - Midpoint scale.

                in the midpoint scale you can define a value that splits the scale into half.
                ```python
                >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Midpoint scale", title_size=18)
                >>> fig, ax = array.plot(
                ...     cbar_label_rotation=-90,
                ...     cbar_label="Discharge m3/s",
                ...     color_scale="midpoint",
                ...     cmap="coolwarm_r",
                ...     midpoint=2,
                ... )

                ```
                ![midpoint-scale-costom-parameters](./../_images/array_glyph/midpoint-scale-costom-parameters.png)
        """
        for key, val in kwargs.items():
            if key not in self.default_options.keys():
                raise ValueError(
                    f"The given keyword argument:{key} is not correct, possible parameters are,"
                    f" {DEFAULT_OPTIONS}"
                )
            else:
                self.default_options[key] = val

        if self.fig is None:
            self.fig, self.ax = self.create_figure_axes()

        arr = self.arr
        fig, ax = self.fig, self.ax

        if self.rgb:
            ax.imshow(arr, extent=self.extent)
        else:
            # if user did not input ticks spacing use the calculated one.
            if "ticks_spacing" in kwargs.keys():
                self.default_options["ticks_spacing"] = kwargs["ticks_spacing"]
            else:
                self.default_options["ticks_spacing"] = self.ticks_spacing

            if "vmin" in kwargs.keys():
                self.default_options["vmin"] = kwargs["vmin"]
            else:
                self.default_options["vmin"] = self.vmin

            if "vmax" in kwargs.keys():
                self.default_options["vmax"] = kwargs["vmax"]
            else:
                self.default_options["vmax"] = self.vmax

            # creating the ticks/bounds
            ticks = self.get_ticks()
            im, cbar_kw = self._plot_im_get_cbar_kw(ax, arr, ticks)

            # Create colorbar
            self.create_color_bar(ax, im, cbar_kw)

        ax.set_title(
            self.default_options["title"], fontsize=self.default_options["title_size"]
        )

        if self.extent is None:
            ax.set_xticklabels([])
            ax.set_yticklabels([])
            ax.set_xticks([])
            ax.set_yticks([])

        optional_display = {}
        if self.default_options["display_cell_value"]:
            indices = get_indices2(arr, [np.nan])
            optional_display["cell_text_value"] = self._plot_text(
                ax, arr, indices, self.default_options
            )

        if points is not None:
            row = points[:, 1]
            col = points[:, 2]
            optional_display["points_scatter"] = ax.scatter(
                col, row, color=point_color, s=point_size
            )
            optional_display["points_id"] = self._plot_point_values(
                ax, points, pid_color, pid_size
            )

        # # Normalize the threshold to the image color range.
        # if self.default_options["background_color_threshold"] is not None:
        #     im.norm(self.default_options["background_color_threshold"])
        # else:
        #     im.norm(self.vmax) / 2.0
        plt.show()
        return fig, ax

    def adjust_ticks(
        self,
        axis: str,
        multiply_value: Union[float, int] = 1,
        add_value: Union[float, int] = 0,
        fmt: str = "{0:g}",
        visible: bool = True,
    ):
        """Adjust the ticks of the axes.

        Parameters
        ----------
        axis: str
            x or y.
        multiply_value: Union[float, int]
            value to be multiplied.
        add_value: Union[float, int]
            value to be added.
        fmt: str, default is "{0:g}".
            format of the ticks.
            - 123.456 with the format "{0:f}" will give '123.456000'.
            - 123.456 with the format "{0:.2f}" will give '123.46'.
            - 123456.789 with the format "{0:e}" will give '1.234568e+05'.
            - 123456.789 with the format "{0:.2e}" will give '1.23e+05'.
            - 123456.789 with the format "{0:g}" will give '123457'.
            - 123456.789 with the format "{0:.2g}" will give '1.2e+05'.
            - 123 with the format "{0:d}" will give '123'.
         visible: bool, optional, default is True.
            Whether the ticks are visible or not.

        Returns
        -------
        None

        Examples
        --------
        - Create an array and instantiate the `ArrayGlyph` object:
            ```python
            >>> import numpy as np
            >>> arr = np.array([[1, 2, 3, 4], [5, 6, 7, 8], [9, 10, 11, 12], [13, 14, 15, 16]])
            >>> extent = [34.62, 34.65, 31.82, 31.85]
            >>> my_glyph = ArrayGlyph(arr, extent=extent)
            >>> fig, ax = my_glyph.plot()

            ```
            ![adjust_tick](./../_images/array_glyph/adjust_tick.png)

        - Adjust the ticks of the x-axis:
            ```python
            >>> my_glyph.adjust_ticks(axis='x', multiply_value=0.01, add_value=34.62, fmt="{0:.2f}")

            ```

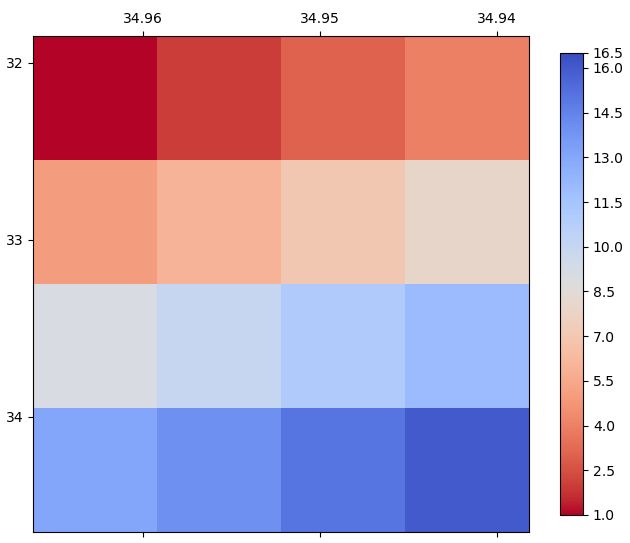

            ![adjust_tick](./../_images/array_glyph/adjust_tick-x.png)

        - Adjust the ticks of the y-axis:
            ```python
            >>> my_glyph.adjust_ticks(axis='y', multiply_value=0.01, add_value=31.82, fmt="{0:.2e}")

            ```

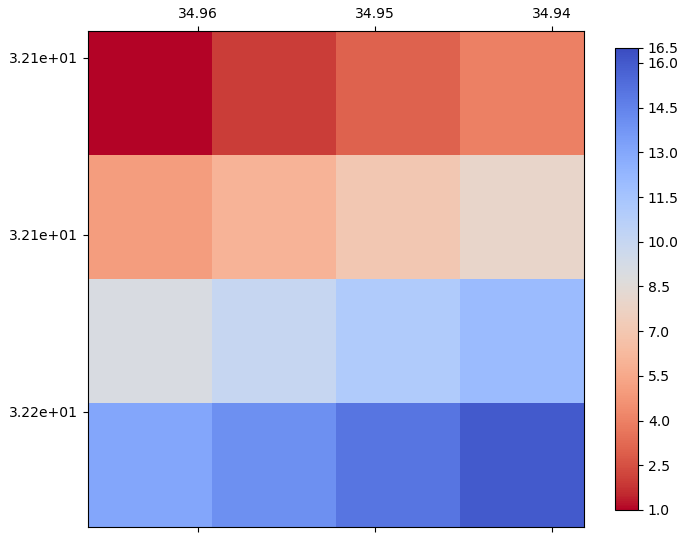

            ![adjust_tick-y](./../_images/array_glyph/adjust_tick-y.png)
        """
        if axis == "x":
            ticks_x = ticker.FuncFormatter(
                lambda x, pos: fmt.format(x * multiply_value + add_value)
            )
            self.ax.xaxis.set_major_formatter(ticks_x)
        else:
            ticks_y = ticker.FuncFormatter(
                lambda y, pos: fmt.format(y * multiply_value + add_value)
            )
            self.ax.yaxis.set_major_formatter(ticks_y)

        if not visible:
            if axis == "x":
                self.ax.get_xaxis().set_visible(visible)
            else:
                self.ax.get_yaxis().set_visible(visible)

        plt.show()

    def animate(
        self,
        time: List[Any],
        points: np.ndarray = None,
        text_colors=("white", "black"),
        interval=200,
        text_loc: list[Any, Any] = None,
        point_color="red",
        point_size=100,
        pid_color="blue",
        pid_size=10,
        **kwargs,
    ):
        """Create an animation from a 3D array.

        This method creates an animation by iterating through the first dimension of a 3D array.
        Each slice of the array becomes a frame in the animation, with optional time labels,
        point annotations, and cell value displays.

        Parameters
        ----------
        time : List[Any]
            A list containing labels for each frame in the animation.
            These could be timestamps, frame numbers, or any other identifiers.
            The length of this list should match the first dimension of the array.
        points : np.ndarray, optional
            Points to display on the array, by default None.
            Should be a 3-column array where:
            - First column: values to display for each point
            - Second column: row indices of the points in the array
            - Third column: column indices of the points in the array
        text_colors : Tuple[str, str], optional
            Two colors to be used for cell value text, by default ("white", "black").
            The first color is used when the cell value is below the background_color_threshold,
            and the second color is used when the cell value is above the threshold.
        interval : int, optional
            Delay between frames in milliseconds, by default 200.
            Controls the speed of the animation (smaller values = faster animation).
        text_loc : list[Any, Any], optional
            Location of the time label text as [x, y] coordinates, by default None.
            If None, defaults to [0.1, 0.2].
        point_color : str, optional
            Color of the points, by default "red".
            Any valid matplotlib color string.
        point_size : int, optional
            Size of the points, by default 100.
            Controls the marker size.
        pid_color : str, optional
            Color of the point value annotations, by default "blue".
            Any valid matplotlib color string.
        pid_size : int, optional
            Size of the point value annotations, by default 10.
            Controls the font size of the annotations.
        **kwargs : dict
            Additional keyword arguments for customizing the animation.

            Plot appearance:
            ---------------
            title : str, optional
                Title of the plot, by default 'Array Plot'.
            title_size : int, optional
                Title font size, by default 15.
            cmap : str, optional
                Colormap name, by default 'coolwarm_r'.
            vmin : float, optional
                Minimum value for color scaling, by default min(array).
            vmax : float, optional
                Maximum value for color scaling, by default max(array).

            Color bar options:
            ----------------
            cbar_orientation : str, optional
                Orientation of the color bar, by default 'vertical'.
                Can be 'horizontal' or 'vertical'.
            cbar_label_rotation : float, optional
                Rotation angle of the color bar label, by default -90.
            cbar_label_location : str, optional
                Location of the color bar label, by default 'bottom'.
                Options: 'top', 'bottom', 'center', 'baseline', 'center_baseline'.
            cbar_length : float, optional
                Ratio to control the height/width of the color bar, by default 0.75.
            ticks_spacing : int, optional
                Spacing between ticks on the color bar, by default 2.
            cbar_label_size : int, optional
                Font size of the color bar label, by default 12.
            cbar_label : str, optional
                Label text for the color bar, by default 'Value'.

            Color scale options:
            ------------------
            color_scale : str, optional
                Type of color scaling to use, by default 'linear'.
                Options:
                - 'linear': Linear scale
                - 'power': Power-law normalization
                - 'sym-lognorm': Symmetrical logarithmic scale
                - 'boundary-norm': Discrete intervals based on boundaries
                - 'midpoint': Scale split at a specified midpoint
            gamma : float, optional
                Exponent for 'power' color scale, by default 0.5.
                Values < 1 emphasize lower values, values > 1 emphasize higher values.
            line_threshold : float, optional
                Threshold for 'sym-lognorm' color scale, by default 0.0001.
            line_scale : float, optional
                Scale factor for 'sym-lognorm' color scale, by default 0.001.
            bounds : List, optional
                Boundaries for 'boundary-norm' color scale, by default None.
                Defines the discrete intervals for color mapping.
            midpoint : float, optional
                Midpoint value for 'midpoint' color scale, by default 0.

            Cell value display options:
            -------------------------
            display_cell_value : bool, optional
                Whether to display the values of cells as text, by default False.
            num_size : int, optional
                Font size of the cell value text, by default 8.
            background_color_threshold : float, optional
                Threshold for cell value text color, by default None.
                If cell value > threshold, text is black; otherwise, text is white.
                If None, uses max(array)/2 as the threshold.

        Returns
        -------
        matplotlib.animation.FuncAnimation
            The animation object that can be displayed in a notebook or saved to a file.

        Raises
        ------
        ValueError
            If an invalid keyword argument is provided.
        ValueError
            If the length of the time list doesn't match the first dimension of the array.

        Notes
        -----
        The animation is created by iterating through the first dimension of the array.
        For example, if the array has shape (10, 20, 30), the animation will have 10 frames,
        each showing a 20x30 slice of the array.

        To display the animation in a Jupyter notebook, you may need to use:
        ```python
        from IPython.display import HTML
        HTML(anim_obj.to_jshtml())
        ```

        To save the animation to a file, use the `save_animation` method after creating
        the animation.

        Examples
        --------
        Basic animation from a 3D array:
        ```python
        >>> import numpy as np
        >>> from cleopatra.array_glyph import ArrayGlyph
        >>> # Create a 3D array with 5 frames, each 10x10
        >>> arr = np.random.randint(1, 10, size=(5, 10, 10))
        >>> # Create labels for each frame
        >>> frame_labels = ["Frame 1", "Frame 2", "Frame 3", "Frame 4", "Frame 5"]
        >>> # Create the ArrayGlyph object
        >>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
        >>> # Create the animation
        >>> anim_obj = animated_array.animate(frame_labels)

        ```
        Animation with custom interval (speed):
        ```python
        >>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
        >>> # Slower animation (500ms between frames)
        >>> anim_obj = animated_array.animate(frame_labels, interval=500)
        >>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
        >>> # Faster animation (100ms between frames)
        >>> anim_obj = animated_array.animate(frame_labels, interval=100)

        ```
        Animation with points:
        ```python
        >>> # Create points to display on the animation
        >>> points = np.array([[1, 2, 3], [2, 5, 5], [3, 8, 8]])
        >>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
        >>> anim_obj = animated_array.animate(
        ...     frame_labels,
        ...     points=points,
        ...     point_color="black",
        ...     point_size=150,
        ...     pid_color="white",
        ...     pid_size=12
        ... )

        ```
        Animation with cell values displayed:
        ```python
        >>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
        >>> anim_obj = animated_array.animate(
        ...     frame_labels,
        ...     display_cell_value=True,
        ...     num_size=10,
        ...     text_colors=("yellow", "blue")
        ... )

        ```
        ![animated_array](./../_images/array_glyph/animated_array.gif)

        Saving the animation to a file:
        ```python
        >>> # Create the animation first
        >>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
        >>> anim_obj = animated_array.animate(frame_labels)
        >>> # Then save it to a file
        >>> animated_array.save_animation("animation.gif", fps=2)

        ```
        """
        if text_loc is None:
            text_loc = [0.1, 0.2]

        for key, val in kwargs.items():
            if key not in self.default_options.keys():
                raise ValueError(
                    f"The given keyword argument:{key} is not correct, possible parameters are,"
                    f" {DEFAULT_OPTIONS}"
                )
            else:
                self.default_options[key] = val

        # if user did not input ticks spacing use the calculated one.
        if "ticks_spacing" in kwargs.keys():
            self.default_options["ticks_spacing"] = kwargs["ticks_spacing"]
        else:
            self.default_options["ticks_spacing"] = self.ticks_spacing

        if "vmin" in kwargs.keys():
            self.default_options["vmin"] = kwargs["vmin"]
        else:
            self.default_options["vmin"] = self.vmin

        if "vmax" in kwargs.keys():
            self.default_options["vmax"] = kwargs["vmax"]
        else:
            self.default_options["vmax"] = self.vmax

        # if optional_display
        precision = self.default_options["precision"]
        array = self.arr

        if self.fig is None:
            self.fig, self.ax = self.create_figure_axes()

        fig, ax = self.fig, self.ax

        ticks = self.get_ticks()
        im, cbar_kw = self._plot_im_get_cbar_kw(ax, array[0, :, :], ticks)

        # Create colorbar
        cbar = ax.figure.colorbar(
            im,
            ax=ax,
            shrink=self.default_options["cbar_length"],
            orientation=self.default_options["cbar_orientation"],
            **cbar_kw,
        )
        cbar.ax.set_ylabel(
            self.default_options["cbar_label"],
            rotation=self.default_options["cbar_label_rotation"],
            va=self.default_options["cbar_label_location"],
            fontsize=self.default_options["cbar_label_size"],
        )
        cbar.ax.tick_params(labelsize=10)

        ax.set_title(
            self.default_options["title"], fontsize=self.default_options["title_size"]
        )
        ax.set_xticklabels([])
        ax.set_yticklabels([])

        ax.set_xticks([])
        ax.set_yticks([])

        if self.default_options["display_cell_value"]:
            indices = get_indices2(array[0, :, :], [np.nan])
            cell_text_value = self._plot_text(
                ax, array[0, :, :], indices, self.default_options
            )
            indices = np.array(indices)

        if points is not None:
            row = points[:, 1]
            col = points[:, 2]
            points_scatter = ax.scatter(col, row, color=point_color, s=point_size)
            points_id = self._plot_point_values(ax, points, pid_color, pid_size)

        # Normalize the threshold to the image color range.
        if self.default_options["background_color_threshold"] is not None:
            background_color_threshold = im.norm(
                self.default_options["background_color_threshold"]
            )
        else:
            background_color_threshold = im.norm(np.nanmax(array)) / 2.0

        day_text = ax.text(
            text_loc[0],
            text_loc[1],
            " ",
            fontsize=self.default_options["cbar_label_size"],
        )

        def init():
            """initialize the plot with the first array"""
            im.set_data(array[0, :, :])
            day_text.set_text("")
            output = [im, day_text]

            if points is not None:
                points_scatter.set_offsets(np.c_[col, row])
                output.append(points_scatter)
                update_points = lambda x: points_id[x].set_text(points[x, 0])
                list(map(update_points, range(len(col))))

                output += points_id

            if self.default_options["display_cell_value"]:
                vals = array[0, indices[:, 0], indices[:, 1]]
                update_cell_value = lambda x: cell_text_value[x].set_text(vals[x])
                list(map(update_cell_value, range(self.no_elem)))
                output += cell_text_value

            return output

        def animate_a(i):
            """plot for each element in the iterable."""
            im.set_data(array[i, :, :])
            day_text.set_text("Date = " + str(time[i])[0:10])
            output = [im, day_text]

            if points is not None:
                points_scatter.set_offsets(np.c_[col, row])
                output.append(points_scatter)

                for x in range(len(col)):
                    points_id[x].set_text(points[x, 0])

                output += points_id

            if self.default_options["display_cell_value"]:
                vals = array[i, indices[:, 0], indices[:, 1]]

                def update_cell_value(x):
                    """Update cell value"""
                    val = round(vals[x], precision)
                    kw = {
                        "color": text_colors[
                            int(im.norm(vals[x]) > background_color_threshold)
                        ]
                    }
                    cell_text_value[x].update(kw)
                    cell_text_value[x].set_text(val)

                list(map(update_cell_value, range(self.no_elem)))

                output += cell_text_value

            return output

        plt.tight_layout()
        anim = FuncAnimation(
            fig,
            animate_a,
            init_func=init,
            frames=np.shape(array)[0],
            interval=interval,
            blit=True,
        )
        self._anim = anim
        plt.show()
        return anim

    def save_animation(self, path: str, fps: int = 2):
        """Save the animation to a file.

        This method saves the animation created by the `animate` method to a file.
        The format of the output file is determined by the file extension in the path.

        Parameters
        ----------
        path : str
            The file path where the animation will be saved.
            The file extension determines the output format.
            Supported formats: gif, mov, avi, mp4.
        fps : int, optional
            Frames per second for the saved animation, by default 2.
            Higher values create faster animations, lower values create slower animations.

        Raises
        ------
        ValueError
            If the file extension is not one of the supported formats.
        FileNotFoundError
            If FFmpeg is not installed (required for mov, avi, and mp4 formats).

        Notes
        -----
        - For GIF format, the PillowWriter is used.
        - For MOV, AVI, and MP4 formats, FFMpegWriter is used, which requires FFmpeg to be installed.
        - You can download FFmpeg from https://ffmpeg.org/

        Examples
        --------
        Save an animation as a GIF file:
        ```python
        >>> import numpy as np
        >>> from cleopatra.array_glyph import ArrayGlyph
        >>> # Create a 3D array with 5 frames, each 10x10
        >>> arr = np.random.randint(1, 10, size=(5, 10, 10))
        >>> frame_labels = ["Frame 1", "Frame 2", "Frame 3", "Frame 4", "Frame 5"]
        >>> animated_array = ArrayGlyph(arr)
        >>> anim_obj = animated_array.animate(frame_labels)
        >>> animated_array.save_animation("animation.gif") # doctest: +SKIP

        ```
        Save with a higher frame rate for a faster animation:
        ```python
        >>> animated_array.save_animation("animation.gif", fps=5) # doctest: +SKIP

        ```
        Save in MP4 format (requires FFmpeg):
        ```python
        >>> animated_array.save_animation("animation.mp4", fps=10) # doctest: +SKIP

        ```
        """
        video_format = path.split(".")[-1]
        if video_format not in SUPPORTED_VIDEO_FORMAT:
            raise ValueError(
                f"The given extension {video_format} implies a format that is not supported, "
                f"only {SUPPORTED_VIDEO_FORMAT} are supported"
            )

        if video_format == "gif":
            writer_gif = animation.PillowWriter(fps=fps)
            self.anim.save(path, writer=writer_gif)
        else:
            try:
                if video_format == "avi" or video_format == "mov":
                    writer_video = animation.FFMpegWriter(fps=fps, bitrate=1800)
                    self.anim.save(path, writer=writer_video)
                elif video_format == "mp4":
                    writer_mp4 = animation.FFMpegWriter(fps=fps, bitrate=1800)
                    self.anim.save(path, writer=writer_mp4)
            except FileNotFoundError:
                print(
                    "Please visit https://ffmpeg.org/ and download a version of ffmpeg compatible with your operating"
                    "system, for more details please check the method definition"
                )

anim property

Animation function

arr property writable

array

default_options property

Default plot options

exclude_value property writable

exclude_value

vmax property

max value in the array

vmin property

min value in the array

__init__(array, exclude_value=np.nan, extent=None, rgb=None, surface_reflectance=None, cutoff=None, ax=None, fig=None, percentile=None, **kwargs)

Initialize the ArrayGlyph object with an array and optional parameters.

Parameters:

Name	Type	Description	Default
array	ndarray	The array to be visualized. Can be a 2D array for single plots or a 3D array for RGB plots or animations.	required
exclude_value	List or numeric	Value(s) used to mask cells out of the domain, by default np.nan. Can be a single value or a list of values to exclude.	nan
extent	List	The extent of the array in the format [xmin, ymin, xmax, ymax], by default None. If provided, the array will be plotted with these spatial boundaries.	None
rgb	List[int]	The indices of the red, green, and blue bands in the given array, by default None. If provided, the array will be treated as an RGB image. Can be a list of three values [r, g, b], or four values if alpha band is included [r, g, b, a].	None
surface_reflectance	int	Surface reflectance value for normalizing satellite data, by default None. Typically 10000 for Sentinel-2 data.	None
cutoff	List	Clip the range of pixel values for each band, by default None. Takes only pixel values from 0 to the value of the cutoff and scales them back to between 0 and 1. Should be a list with one value per band.	None
ax	Axes	A pre-existing axes to plot on, by default None. If None, a new axes will be created.	None
fig	Figure	A pre-existing figure to plot on, by default None. If None, a new figure will be created.	None
percentile	int	The percentile value to be used for scaling the array values, by default None. Used to enhance contrast by stretching the histogram.	None
**kwargs	dict	Additional keyword arguments for customizing the plot. Supported arguments include: figsize : tuple, optional Figure size, by default (8, 8). vmin : float, optional Minimum value for color scaling, by default min(array). vmax : float, optional Maximum value for color scaling, by default max(array). title : str, optional Title of the plot, by default 'Array Plot'. title_size : int, optional Title font size, by default 15. cmap : str, optional Colormap name, by default 'coolwarm_r'.	{}

Raises:

Type	Description
ValueError	If an invalid keyword argument is provided.
ValueError	If rgb is provided but the array doesn't have enough dimensions.

Examples:

Basic initialization with a 2D array:

>>> import numpy as np
>>> from cleopatra.array_glyph import ArrayGlyph
>>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
>>> array_glyph = ArrayGlyph(arr)
>>> fig, ax = array_glyph.plot()

Initialization with custom figure size and title:

>>> array_glyph = ArrayGlyph(arr, figsize=(10, 8), title="Custom Array Plot")
>>> fig, ax = array_glyph.plot()

Initialization with RGB bands from a 3D array:

>>> rgb_array = np.random.randint(0, 255, size=(3, 10, 10))
>>> rgb_glyph = ArrayGlyph(rgb_array, rgb=[0, 1, 2], surface_reflectance=255)
>>> fig, ax = rgb_glyph.plot()

Initialization with custom extent:

>>> array_glyph = ArrayGlyph(arr, extent=[0, 0, 10, 10])
>>> fig, ax = array_glyph.plot()

Source code in cleopatra/array_glyph.py

def __init__(
    self,
    array: np.ndarray,
    exclude_value: List = np.nan,
    extent: List = None,
    rgb: List[int] = None,
    surface_reflectance: int = None,
    cutoff: List = None,
    ax: Axes = None,
    fig: Figure = None,
    percentile: int = None,
    **kwargs,
):
    """Initialize the ArrayGlyph object with an array and optional parameters.

    Parameters
    ----------
    array : np.ndarray
        The array to be visualized. Can be a 2D array for single plots or a 3D array for RGB plots or animations.
    exclude_value : List or numeric, optional
        Value(s) used to mask cells out of the domain, by default np.nan.
        Can be a single value or a list of values to exclude.
    extent : List, optional
        The extent of the array in the format [xmin, ymin, xmax, ymax], by default None.
        If provided, the array will be plotted with these spatial boundaries.
    rgb : List[int], optional
        The indices of the red, green, and blue bands in the given array, by default None.
        If provided, the array will be treated as an RGB image.
        Can be a list of three values [r, g, b], or four values if alpha band is included [r, g, b, a].
    surface_reflectance : int, optional
        Surface reflectance value for normalizing satellite data, by default None.
        Typically 10000 for Sentinel-2 data.
    cutoff : List, optional
        Clip the range of pixel values for each band, by default None.
        Takes only pixel values from 0 to the value of the cutoff and scales them back to between 0 and 1.
        Should be a list with one value per band.
    ax : matplotlib.axes.Axes, optional
        A pre-existing axes to plot on, by default None.
        If None, a new axes will be created.
    fig : matplotlib.figure.Figure, optional
        A pre-existing figure to plot on, by default None.
        If None, a new figure will be created.
    percentile : int, optional
        The percentile value to be used for scaling the array values, by default None.
        Used to enhance contrast by stretching the histogram.
    **kwargs : dict
        Additional keyword arguments for customizing the plot.
        Supported arguments include:
            figsize : tuple, optional
                Figure size, by default (8, 8).
            vmin : float, optional
                Minimum value for color scaling, by default min(array).
            vmax : float, optional
                Maximum value for color scaling, by default max(array).
            title : str, optional
                Title of the plot, by default 'Array Plot'.
            title_size : int, optional
                Title font size, by default 15.
            cmap : str, optional
                Colormap name, by default 'coolwarm_r'.

    Raises
    ------
    ValueError
        If an invalid keyword argument is provided.
    ValueError
        If rgb is provided but the array doesn't have enough dimensions.

    Examples
    --------
    Basic initialization with a 2D array:
    ```python
    >>> import numpy as np
    >>> from cleopatra.array_glyph import ArrayGlyph
    >>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
    >>> array_glyph = ArrayGlyph(arr)
    >>> fig, ax = array_glyph.plot()

    ```
    Initialization with custom figure size and title:
    ```python
    >>> array_glyph = ArrayGlyph(arr, figsize=(10, 8), title="Custom Array Plot")
    >>> fig, ax = array_glyph.plot()

    ```
    Initialization with RGB bands from a 3D array:
    ```python
    >>> rgb_array = np.random.randint(0, 255, size=(3, 10, 10))
    >>> rgb_glyph = ArrayGlyph(rgb_array, rgb=[0, 1, 2], surface_reflectance=255)
    >>> fig, ax = rgb_glyph.plot()

    ```
    Initialization with custom extent:
    ```python
    >>> array_glyph = ArrayGlyph(arr, extent=[0, 0, 10, 10])
    >>> fig, ax = array_glyph.plot()

    ```
    """
    self._default_options = DEFAULT_OPTIONS.copy()

    for key, val in kwargs.items():
        if key not in self.default_options.keys():
            raise ValueError(
                f"The given keyword argument:{key} is not correct, possible parameters are,"
                f" {DEFAULT_OPTIONS}"
            )
        else:
            self.default_options[key] = val
    # first replace the no_data_value by nan
    # convert the array to float32 to be able to replace the no data value with nan
    if exclude_value is not np.nan:
        if len(exclude_value) > 1:
            mask = np.logical_or(
                np.isclose(array, exclude_value[0], rtol=0.001),
                np.isclose(array, exclude_value[1], rtol=0.001),
            )
        else:
            mask = np.isclose(array, exclude_value[0], rtol=0.0000001)
        array = ma.array(array, mask=mask, dtype=array.dtype)
    else:
        array = ma.array(array)

    # convert the extent from [xmin, ymin, xmax, ymax] to [xmin, xmax, ymin, ymax] as required by matplotlib.
    if extent is not None:
        extent = [extent[0], extent[2], extent[1], extent[3]]
    self.extent = extent

    if rgb is not None:
        self.rgb = True
        # prepare to plot rgb plot only if there are three arrays
        if array.shape[0] < 3:
            raise ValueError(
                f"To plot RGB plot the given array should have only 3 arrays, given array have "
                f"{array.shape[0]}"
            )
        else:
            array = self.prepare_array(
                array,
                rgb=rgb,
                surface_reflectance=surface_reflectance,
                cutoff=cutoff,
                percentile=percentile,
            )
    else:
        self.rgb = False

    self._exclude_value = exclude_value

    self._vmax = (
        np.nanmax(array) if kwargs.get("vmax") is None else kwargs.get("vmax")
    )
    self._vmin = (
        np.nanmin(array) if kwargs.get("vmin") is None else kwargs.get("vmin")
    )

    self._arr = array
    # get the tick spacing that has 10 ticks only
    self.ticks_spacing = (self._vmax - self._vmin) / 10
    shape = array.shape
    if len(shape) == 3:
        no_elem = array[0, :, :].count()
    else:
        no_elem = array.count()

    self.no_elem = no_elem

    if fig is not None:
        self.fig, self.ax = fig, ax
    else:
        self.fig = None

__str__()

String representation of the Array object.

Source code in cleopatra/array_glyph.py

def __str__(self):
    """String representation of the Array object."""
    message = f"""
                Min: {self.vmin}
                Max: {self.vmax}
                Exclude values: {self.exclude_value}
                RGB: {self.rgb}
            """
    return message

adjust_ticks(axis, multiply_value=1, add_value=0, fmt='{0:g}', visible=True)

Adjust the ticks of the axes.

Parameters:

Name	Type	Description	Default
axis	str	x or y.	required
multiply_value	Union[float, int]	value to be multiplied.	1
add_value	Union[float, int]	value to be added.	0
fmt	str	format of the ticks. - 123.456 with the format "{0:f}" will give '123.456000'. - 123.456 with the format "{0:.2f}" will give '123.46'. - 123456.789 with the format "{0:e}" will give '1.234568e+05'. - 123456.789 with the format "{0:.2e}" will give '1.23e+05'. - 123456.789 with the format "{0:g}" will give '123457'. - 123456.789 with the format "{0:.2g}" will give '1.2e+05'. - 123 with the format "{0:d}" will give '123'. visible: bool, optional, default is True. Whether the ticks are visible or not.	'{0:g}'

Returns:

Type	Description
None

Examples:

• Create an array and instantiate the ArrayGlyph object:

  >>> import numpy as np
  >>> arr = np.array([[1, 2, 3, 4], [5, 6, 7, 8], [9, 10, 11, 12], [13, 14, 15, 16]])
  >>> extent = [34.62, 34.65, 31.82, 31.85]
  >>> my_glyph = ArrayGlyph(arr, extent=extent)
  >>> fig, ax = my_glyph.plot()




• Adjust the ticks of the x-axis:

  >>> my_glyph.adjust_ticks(axis='x', multiply_value=0.01, add_value=34.62, fmt="{0:.2f}")




• Adjust the ticks of the y-axis:

  >>> my_glyph.adjust_ticks(axis='y', multiply_value=0.01, add_value=31.82, fmt="{0:.2e}")




Source code in cleopatra/array_glyph.py

def adjust_ticks(
    self,
    axis: str,
    multiply_value: Union[float, int] = 1,
    add_value: Union[float, int] = 0,
    fmt: str = "{0:g}",
    visible: bool = True,
):
    """Adjust the ticks of the axes.

    Parameters
    ----------
    axis: str
        x or y.
    multiply_value: Union[float, int]
        value to be multiplied.
    add_value: Union[float, int]
        value to be added.
    fmt: str, default is "{0:g}".
        format of the ticks.
        - 123.456 with the format "{0:f}" will give '123.456000'.
        - 123.456 with the format "{0:.2f}" will give '123.46'.
        - 123456.789 with the format "{0:e}" will give '1.234568e+05'.
        - 123456.789 with the format "{0:.2e}" will give '1.23e+05'.
        - 123456.789 with the format "{0:g}" will give '123457'.
        - 123456.789 with the format "{0:.2g}" will give '1.2e+05'.
        - 123 with the format "{0:d}" will give '123'.
     visible: bool, optional, default is True.
        Whether the ticks are visible or not.

    Returns
    -------
    None

    Examples
    --------
    - Create an array and instantiate the `ArrayGlyph` object:
        ```python
        >>> import numpy as np
        >>> arr = np.array([[1, 2, 3, 4], [5, 6, 7, 8], [9, 10, 11, 12], [13, 14, 15, 16]])
        >>> extent = [34.62, 34.65, 31.82, 31.85]
        >>> my_glyph = ArrayGlyph(arr, extent=extent)
        >>> fig, ax = my_glyph.plot()

        ```
        ![adjust_tick](./../_images/array_glyph/adjust_tick.png)

    - Adjust the ticks of the x-axis:
        ```python
        >>> my_glyph.adjust_ticks(axis='x', multiply_value=0.01, add_value=34.62, fmt="{0:.2f}")

        ```
        ![adjust_tick](./../_images/array_glyph/adjust_tick-x.png)

    - Adjust the ticks of the y-axis:
        ```python
        >>> my_glyph.adjust_ticks(axis='y', multiply_value=0.01, add_value=31.82, fmt="{0:.2e}")

        ```
        ![adjust_tick-y](./../_images/array_glyph/adjust_tick-y.png)
    """
    if axis == "x":
        ticks_x = ticker.FuncFormatter(
            lambda x, pos: fmt.format(x * multiply_value + add_value)
        )
        self.ax.xaxis.set_major_formatter(ticks_x)
    else:
        ticks_y = ticker.FuncFormatter(
            lambda y, pos: fmt.format(y * multiply_value + add_value)
        )
        self.ax.yaxis.set_major_formatter(ticks_y)

    if not visible:
        if axis == "x":
            self.ax.get_xaxis().set_visible(visible)
        else:
            self.ax.get_yaxis().set_visible(visible)

    plt.show()

animate(time, points=None, text_colors=('white', 'black'), interval=200, text_loc=None, point_color='red', point_size=100, pid_color='blue', pid_size=10, **kwargs)

Create an animation from a 3D array.

This method creates an animation by iterating through the first dimension of a 3D array. Each slice of the array becomes a frame in the animation, with optional time labels, point annotations, and cell value displays.

Parameters:

Name	Type	Description	Default
time	List[Any]	A list containing labels for each frame in the animation. These could be timestamps, frame numbers, or any other identifiers. The length of this list should match the first dimension of the array.	required
points	ndarray	Points to display on the array, by default None. Should be a 3-column array where: - First column: values to display for each point - Second column: row indices of the points in the array - Third column: column indices of the points in the array	None
text_colors	Tuple[str, str]	Two colors to be used for cell value text, by default ("white", "black"). The first color is used when the cell value is below the background_color_threshold, and the second color is used when the cell value is above the threshold.	('white', 'black')
interval	int	Delay between frames in milliseconds, by default 200. Controls the speed of the animation (smaller values = faster animation).	200
text_loc	list[Any, Any]	Location of the time label text as [x, y] coordinates, by default None. If None, defaults to [0.1, 0.2].	None
point_color	str	Color of the points, by default "red". Any valid matplotlib color string.	'red'
point_size	int	Size of the points, by default 100. Controls the marker size.	100
pid_color	str	Color of the point value annotations, by default "blue". Any valid matplotlib color string.	'blue'
pid_size	int	Size of the point value annotations, by default 10. Controls the font size of the annotations.	10
**kwargs	dict	Additional keyword arguments for customizing the animation. Plot appearance: title : str, optional Title of the plot, by default 'Array Plot'. title_size : int, optional Title font size, by default 15. cmap : str, optional Colormap name, by default 'coolwarm_r'. vmin : float, optional Minimum value for color scaling, by default min(array). vmax : float, optional Maximum value for color scaling, by default max(array). Color bar options: cbar_orientation : str, optional Orientation of the color bar, by default 'vertical'. Can be 'horizontal' or 'vertical'. cbar_label_rotation : float, optional Rotation angle of the color bar label, by default -90. cbar_label_location : str, optional Location of the color bar label, by default 'bottom'. Options: 'top', 'bottom', 'center', 'baseline', 'center_baseline'. cbar_length : float, optional Ratio to control the height/width of the color bar, by default 0.75. ticks_spacing : int, optional Spacing between ticks on the color bar, by default 2. cbar_label_size : int, optional Font size of the color bar label, by default 12. cbar_label : str, optional Label text for the color bar, by default 'Value'. Color scale options: color_scale : str, optional Type of color scaling to use, by default 'linear'. Options: - 'linear': Linear scale - 'power': Power-law normalization - 'sym-lognorm': Symmetrical logarithmic scale - 'boundary-norm': Discrete intervals based on boundaries - 'midpoint': Scale split at a specified midpoint gamma : float, optional Exponent for 'power' color scale, by default 0.5. Values < 1 emphasize lower values, values > 1 emphasize higher values. line_threshold : float, optional Threshold for 'sym-lognorm' color scale, by default 0.0001. line_scale : float, optional Scale factor for 'sym-lognorm' color scale, by default 0.001. bounds : List, optional Boundaries for 'boundary-norm' color scale, by default None. Defines the discrete intervals for color mapping. midpoint : float, optional Midpoint value for 'midpoint' color scale, by default 0. Cell value display options: display_cell_value : bool, optional Whether to display the values of cells as text, by default False. num_size : int, optional Font size of the cell value text, by default 8. background_color_threshold : float, optional Threshold for cell value text color, by default None. If cell value > threshold, text is black; otherwise, text is white. If None, uses max(array)/2 as the threshold.	{}

Returns:

Type	Description
FuncAnimation	The animation object that can be displayed in a notebook or saved to a file.

Raises:

Type	Description
ValueError	If an invalid keyword argument is provided.
ValueError	If the length of the time list doesn't match the first dimension of the array.

Notes

The animation is created by iterating through the first dimension of the array. For example, if the array has shape (10, 20, 30), the animation will have 10 frames, each showing a 20x30 slice of the array.

To display the animation in a Jupyter notebook, you may need to use:

from IPython.display import HTML
HTML(anim_obj.to_jshtml())

To save the animation to a file, use the save_animation method after creating the animation.

Examples:

Basic animation from a 3D array:

>>> import numpy as np
>>> from cleopatra.array_glyph import ArrayGlyph
>>> # Create a 3D array with 5 frames, each 10x10
>>> arr = np.random.randint(1, 10, size=(5, 10, 10))
>>> # Create labels for each frame
>>> frame_labels = ["Frame 1", "Frame 2", "Frame 3", "Frame 4", "Frame 5"]
>>> # Create the ArrayGlyph object
>>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
>>> # Create the animation
>>> anim_obj = animated_array.animate(frame_labels)

Animation with custom interval (speed):

>>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
>>> # Slower animation (500ms between frames)
>>> anim_obj = animated_array.animate(frame_labels, interval=500)
>>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
>>> # Faster animation (100ms between frames)
>>> anim_obj = animated_array.animate(frame_labels, interval=100)

Animation with points:

>>> # Create points to display on the animation
>>> points = np.array([[1, 2, 3], [2, 5, 5], [3, 8, 8]])
>>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
>>> anim_obj = animated_array.animate(
...     frame_labels,
...     points=points,
...     point_color="black",
...     point_size=150,
...     pid_color="white",
...     pid_size=12
... )

Animation with cell values displayed:

>>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
>>> anim_obj = animated_array.animate(
...     frame_labels,
...     display_cell_value=True,
...     num_size=10,
...     text_colors=("yellow", "blue")
... )

Saving the animation to a file:

>>> # Create the animation first
>>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
>>> anim_obj = animated_array.animate(frame_labels)
>>> # Then save it to a file
>>> animated_array.save_animation("animation.gif", fps=2)

Source code in cleopatra/array_glyph.py

def animate(
    self,
    time: List[Any],
    points: np.ndarray = None,
    text_colors=("white", "black"),
    interval=200,
    text_loc: list[Any, Any] = None,
    point_color="red",
    point_size=100,
    pid_color="blue",
    pid_size=10,
    **kwargs,
):
    """Create an animation from a 3D array.

    This method creates an animation by iterating through the first dimension of a 3D array.
    Each slice of the array becomes a frame in the animation, with optional time labels,
    point annotations, and cell value displays.

    Parameters
    ----------
    time : List[Any]
        A list containing labels for each frame in the animation.
        These could be timestamps, frame numbers, or any other identifiers.
        The length of this list should match the first dimension of the array.
    points : np.ndarray, optional
        Points to display on the array, by default None.
        Should be a 3-column array where:
        - First column: values to display for each point
        - Second column: row indices of the points in the array
        - Third column: column indices of the points in the array
    text_colors : Tuple[str, str], optional
        Two colors to be used for cell value text, by default ("white", "black").
        The first color is used when the cell value is below the background_color_threshold,
        and the second color is used when the cell value is above the threshold.
    interval : int, optional
        Delay between frames in milliseconds, by default 200.
        Controls the speed of the animation (smaller values = faster animation).
    text_loc : list[Any, Any], optional
        Location of the time label text as [x, y] coordinates, by default None.
        If None, defaults to [0.1, 0.2].
    point_color : str, optional
        Color of the points, by default "red".
        Any valid matplotlib color string.
    point_size : int, optional
        Size of the points, by default 100.
        Controls the marker size.
    pid_color : str, optional
        Color of the point value annotations, by default "blue".
        Any valid matplotlib color string.
    pid_size : int, optional
        Size of the point value annotations, by default 10.
        Controls the font size of the annotations.
    **kwargs : dict
        Additional keyword arguments for customizing the animation.

        Plot appearance:
        ---------------
        title : str, optional
            Title of the plot, by default 'Array Plot'.
        title_size : int, optional
            Title font size, by default 15.
        cmap : str, optional
            Colormap name, by default 'coolwarm_r'.
        vmin : float, optional
            Minimum value for color scaling, by default min(array).
        vmax : float, optional
            Maximum value for color scaling, by default max(array).

        Color bar options:
        ----------------
        cbar_orientation : str, optional
            Orientation of the color bar, by default 'vertical'.
            Can be 'horizontal' or 'vertical'.
        cbar_label_rotation : float, optional
            Rotation angle of the color bar label, by default -90.
        cbar_label_location : str, optional
            Location of the color bar label, by default 'bottom'.
            Options: 'top', 'bottom', 'center', 'baseline', 'center_baseline'.
        cbar_length : float, optional
            Ratio to control the height/width of the color bar, by default 0.75.
        ticks_spacing : int, optional
            Spacing between ticks on the color bar, by default 2.
        cbar_label_size : int, optional
            Font size of the color bar label, by default 12.
        cbar_label : str, optional
            Label text for the color bar, by default 'Value'.

        Color scale options:
        ------------------
        color_scale : str, optional
            Type of color scaling to use, by default 'linear'.
            Options:
            - 'linear': Linear scale
            - 'power': Power-law normalization
            - 'sym-lognorm': Symmetrical logarithmic scale
            - 'boundary-norm': Discrete intervals based on boundaries
            - 'midpoint': Scale split at a specified midpoint
        gamma : float, optional
            Exponent for 'power' color scale, by default 0.5.
            Values < 1 emphasize lower values, values > 1 emphasize higher values.
        line_threshold : float, optional
            Threshold for 'sym-lognorm' color scale, by default 0.0001.
        line_scale : float, optional
            Scale factor for 'sym-lognorm' color scale, by default 0.001.
        bounds : List, optional
            Boundaries for 'boundary-norm' color scale, by default None.
            Defines the discrete intervals for color mapping.
        midpoint : float, optional
            Midpoint value for 'midpoint' color scale, by default 0.

        Cell value display options:
        -------------------------
        display_cell_value : bool, optional
            Whether to display the values of cells as text, by default False.
        num_size : int, optional
            Font size of the cell value text, by default 8.
        background_color_threshold : float, optional
            Threshold for cell value text color, by default None.
            If cell value > threshold, text is black; otherwise, text is white.
            If None, uses max(array)/2 as the threshold.

    Returns
    -------
    matplotlib.animation.FuncAnimation
        The animation object that can be displayed in a notebook or saved to a file.

    Raises
    ------
    ValueError
        If an invalid keyword argument is provided.
    ValueError
        If the length of the time list doesn't match the first dimension of the array.

    Notes
    -----
    The animation is created by iterating through the first dimension of the array.
    For example, if the array has shape (10, 20, 30), the animation will have 10 frames,
    each showing a 20x30 slice of the array.

    To display the animation in a Jupyter notebook, you may need to use:
    ```python
    from IPython.display import HTML
    HTML(anim_obj.to_jshtml())
    ```

    To save the animation to a file, use the `save_animation` method after creating
    the animation.

    Examples
    --------
    Basic animation from a 3D array:
    ```python
    >>> import numpy as np
    >>> from cleopatra.array_glyph import ArrayGlyph
    >>> # Create a 3D array with 5 frames, each 10x10
    >>> arr = np.random.randint(1, 10, size=(5, 10, 10))
    >>> # Create labels for each frame
    >>> frame_labels = ["Frame 1", "Frame 2", "Frame 3", "Frame 4", "Frame 5"]
    >>> # Create the ArrayGlyph object
    >>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
    >>> # Create the animation
    >>> anim_obj = animated_array.animate(frame_labels)

    ```
    Animation with custom interval (speed):
    ```python
    >>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
    >>> # Slower animation (500ms between frames)
    >>> anim_obj = animated_array.animate(frame_labels, interval=500)
    >>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
    >>> # Faster animation (100ms between frames)
    >>> anim_obj = animated_array.animate(frame_labels, interval=100)

    ```
    Animation with points:
    ```python
    >>> # Create points to display on the animation
    >>> points = np.array([[1, 2, 3], [2, 5, 5], [3, 8, 8]])
    >>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
    >>> anim_obj = animated_array.animate(
    ...     frame_labels,
    ...     points=points,
    ...     point_color="black",
    ...     point_size=150,
    ...     pid_color="white",
    ...     pid_size=12
    ... )

    ```
    Animation with cell values displayed:
    ```python
    >>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
    >>> anim_obj = animated_array.animate(
    ...     frame_labels,
    ...     display_cell_value=True,
    ...     num_size=10,
    ...     text_colors=("yellow", "blue")
    ... )

    ```
    ![animated_array](./../_images/array_glyph/animated_array.gif)

    Saving the animation to a file:
    ```python
    >>> # Create the animation first
    >>> animated_array = ArrayGlyph(arr, figsize=(8, 8), title="Animated Array")
    >>> anim_obj = animated_array.animate(frame_labels)
    >>> # Then save it to a file
    >>> animated_array.save_animation("animation.gif", fps=2)

    ```
    """
    if text_loc is None:
        text_loc = [0.1, 0.2]

    for key, val in kwargs.items():
        if key not in self.default_options.keys():
            raise ValueError(
                f"The given keyword argument:{key} is not correct, possible parameters are,"
                f" {DEFAULT_OPTIONS}"
            )
        else:
            self.default_options[key] = val

    # if user did not input ticks spacing use the calculated one.
    if "ticks_spacing" in kwargs.keys():
        self.default_options["ticks_spacing"] = kwargs["ticks_spacing"]
    else:
        self.default_options["ticks_spacing"] = self.ticks_spacing

    if "vmin" in kwargs.keys():
        self.default_options["vmin"] = kwargs["vmin"]
    else:
        self.default_options["vmin"] = self.vmin

    if "vmax" in kwargs.keys():
        self.default_options["vmax"] = kwargs["vmax"]
    else:
        self.default_options["vmax"] = self.vmax

    # if optional_display
    precision = self.default_options["precision"]
    array = self.arr

    if self.fig is None:
        self.fig, self.ax = self.create_figure_axes()

    fig, ax = self.fig, self.ax

    ticks = self.get_ticks()
    im, cbar_kw = self._plot_im_get_cbar_kw(ax, array[0, :, :], ticks)

    # Create colorbar
    cbar = ax.figure.colorbar(
        im,
        ax=ax,
        shrink=self.default_options["cbar_length"],
        orientation=self.default_options["cbar_orientation"],
        **cbar_kw,
    )
    cbar.ax.set_ylabel(
        self.default_options["cbar_label"],
        rotation=self.default_options["cbar_label_rotation"],
        va=self.default_options["cbar_label_location"],
        fontsize=self.default_options["cbar_label_size"],
    )
    cbar.ax.tick_params(labelsize=10)

    ax.set_title(
        self.default_options["title"], fontsize=self.default_options["title_size"]
    )
    ax.set_xticklabels([])
    ax.set_yticklabels([])

    ax.set_xticks([])
    ax.set_yticks([])

    if self.default_options["display_cell_value"]:
        indices = get_indices2(array[0, :, :], [np.nan])
        cell_text_value = self._plot_text(
            ax, array[0, :, :], indices, self.default_options
        )
        indices = np.array(indices)

    if points is not None:
        row = points[:, 1]
        col = points[:, 2]
        points_scatter = ax.scatter(col, row, color=point_color, s=point_size)
        points_id = self._plot_point_values(ax, points, pid_color, pid_size)

    # Normalize the threshold to the image color range.
    if self.default_options["background_color_threshold"] is not None:
        background_color_threshold = im.norm(
            self.default_options["background_color_threshold"]
        )
    else:
        background_color_threshold = im.norm(np.nanmax(array)) / 2.0

    day_text = ax.text(
        text_loc[0],
        text_loc[1],
        " ",
        fontsize=self.default_options["cbar_label_size"],
    )

    def init():
        """initialize the plot with the first array"""
        im.set_data(array[0, :, :])
        day_text.set_text("")
        output = [im, day_text]

        if points is not None:
            points_scatter.set_offsets(np.c_[col, row])
            output.append(points_scatter)
            update_points = lambda x: points_id[x].set_text(points[x, 0])
            list(map(update_points, range(len(col))))

            output += points_id

        if self.default_options["display_cell_value"]:
            vals = array[0, indices[:, 0], indices[:, 1]]
            update_cell_value = lambda x: cell_text_value[x].set_text(vals[x])
            list(map(update_cell_value, range(self.no_elem)))
            output += cell_text_value

        return output

    def animate_a(i):
        """plot for each element in the iterable."""
        im.set_data(array[i, :, :])
        day_text.set_text("Date = " + str(time[i])[0:10])
        output = [im, day_text]

        if points is not None:
            points_scatter.set_offsets(np.c_[col, row])
            output.append(points_scatter)

            for x in range(len(col)):
                points_id[x].set_text(points[x, 0])

            output += points_id

        if self.default_options["display_cell_value"]:
            vals = array[i, indices[:, 0], indices[:, 1]]

            def update_cell_value(x):
                """Update cell value"""
                val = round(vals[x], precision)
                kw = {
                    "color": text_colors[
                        int(im.norm(vals[x]) > background_color_threshold)
                    ]
                }
                cell_text_value[x].update(kw)
                cell_text_value[x].set_text(val)

            list(map(update_cell_value, range(self.no_elem)))

            output += cell_text_value

        return output

    plt.tight_layout()
    anim = FuncAnimation(
        fig,
        animate_a,
        init_func=init,
        frames=np.shape(array)[0],
        interval=interval,
        blit=True,
    )
    self._anim = anim
    plt.show()
    return anim

apply_colormap(cmap)

Apply a matplotlib colormap to an array.

Create an RGB channel from the given array using the given colormap.

Parameters:

Name	Type	Description	Default
cmap	Union[Colormap, str]	colormap.	required

Returns:

Type	Description
np.ndarray: 8-bit array	the array with the colormap applied.

Examples:

• Create an array and instantiate the Array object:

  >>> import numpy as np
  >>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
  >>> array = ArrayGlyph(arr)
  >>> rgb_array = array.apply_colormap("coolwarm_r")
  >>> print(rgb_array) # doctest: +SKIP
  [[[179   3  38]
    [221  96  76]
    [244 154 123]]
   [[244 196 173]
    [220 220 221]
    [183 207 249]]
   [[139 174 253]
    [ 96 128 232]
    [ 58  76 192]]]

  >>> print(rgb_array.dtype)
  uint8


Source code in cleopatra/array_glyph.py

def apply_colormap(self, cmap: Union[Colormap, str]) -> np.ndarray:
    """Apply a matplotlib colormap to an array.

        Create an RGB channel from the given array using the given colormap.

    Parameters
    ----------
    cmap: Colormap/str
        colormap.

    Returns
    -------
    np.ndarray: 8-bit array
        the array with the colormap applied.

    Examples
    --------
    - Create an array and instantiate the `Array` object:
    ```python
    >>> import numpy as np
    >>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
    >>> array = ArrayGlyph(arr)
    >>> rgb_array = array.apply_colormap("coolwarm_r")
    >>> print(rgb_array) # doctest: +SKIP
    [[[179   3  38]
      [221  96  76]
      [244 154 123]]
     [[244 196 173]
      [220 220 221]
      [183 207 249]]
     [[139 174 253]
      [ 96 128 232]
      [ 58  76 192]]]

    >>> print(rgb_array.dtype)
    uint8

    ```
    """
    colormap = plt.get_cmap(cmap) if isinstance(cmap, str) else cmap
    normed_data = (self.arr - self.arr.min()) / (self.arr.max() - self.arr.min())
    colored = colormap(normed_data)
    return (colored[:, :, :3] * 255).astype("uint8")

create_color_bar(ax, im, cbar_kw)

Create Color bar.

Parameters:

Name	Type	Description	Default
ax	Axes	matplotlib axes.	required
im	AxesImage	Image axes.	required
cbar_kw	dict	color bar keyword arguments.	required

Returns:

Name	Type	Description
Colorbar	Colorbar	colorbar object.

Source code in cleopatra/array_glyph.py

def create_color_bar(self, ax: Axes, im: AxesImage, cbar_kw: dict) -> Colorbar:
    """Create Color bar.

    Parameters
    ----------
    ax: Axes
        matplotlib axes.
    im: AxesImage
        Image axes.
    cbar_kw: dict
        color bar keyword arguments.

    Returns
    -------
    Colorbar:
        colorbar object.
    """
    # im or cax is the last image added to the axes
    # im = ax.images[-1]
    cbar = ax.figure.colorbar(
        im,
        ax=ax,
        shrink=self.default_options["cbar_length"],
        orientation=self.default_options["cbar_orientation"],
        **cbar_kw,
    )
    # cbar.ax.set_ylabel(
    #     self.default_options["cbar_label"],
    #     rotation=self.default_options["cbar_label_rotation"],
    #     va=self.default_options["cbar_label_location"],
    #     fontsize=self.default_options["cbar_label_size"],
    # )
    cbar.ax.tick_params(labelsize=10)
    cbar.set_label(
        self.default_options["cbar_label"],
        fontsize=self.default_options["cbar_label_size"],
        loc=self.default_options["cbar_label_location"],
    )

    return cbar

create_figure_axes()

Create the figure and the axes.

Returns:

Name	Type	Description
fig	Figure	the created figure.
ax	Axes	the created axes.

Source code in cleopatra/array_glyph.py

def create_figure_axes(self) -> Tuple[Figure, Axes]:
    """Create the figure and the axes.

    Returns
    -------
    fig: matplotlib.figure.Figure
        the created figure.
    ax: matplotlib.axes.Axes
        the created axes.
    """
    fig, ax = plt.subplots(figsize=self.default_options["figsize"])

    return fig, ax

get_ticks()

get a list of ticks for the color bar

Source code in cleopatra/array_glyph.py

def get_ticks(self) -> np.ndarray:
    """get a list of ticks for the color bar"""
    ticks_spacing = self.default_options["ticks_spacing"]
    vmax = self.default_options["vmax"]
    vmin = self.default_options["vmin"]
    remainder = np.round(math.remainder(vmax, ticks_spacing), 3)
    # np.mod(vmax, ticks_spacing) gives float point error, so we use the round function.
    if remainder == 0:
        ticks = np.arange(vmin, vmax + ticks_spacing, ticks_spacing)
    else:
        try:
            ticks = np.arange(vmin, vmax + ticks_spacing, ticks_spacing)
        except ValueError:
            raise ValueError(
                "The number of ticks exceeded the max allowed size, possible errors"
                f" is the value of the NodataValue you entered-{self.exclude_value}"
            )
        ticks = np.append(
            ticks,
            [int(vmax / ticks_spacing) * ticks_spacing + ticks_spacing],
        )
    return ticks

plot(points=None, point_color='red', point_size=100, pid_color='blue', pid_size=10, **kwargs)

Plot the array with customizable visualization options.

This method creates a visualization of the array with various customization options including color scales, color bars, cell value display, and point annotations. It supports both regular arrays and RGB arrays.

Parameters:

Name	Type	Description	Default
points	ndarray	Points to display on the array, by default None. Should be a 3-column array where: - First column: values to display for each point - Second column: row indices of the points in the array - Third column: column indices of the points in the array	None
point_color	str	Color of the points, by default "red". Any valid matplotlib color string.	'red'
point_size	Union[int, float]	Size of the points, by default 100. Controls the marker size.	100
pid_color	str	Color of the point value annotations, by default "blue". Any valid matplotlib color string.	'blue'
pid_size	Union[int, float]	Size of the point value annotations, by default 10. Controls the font size of the annotations.	10
**kwargs	dict	Additional keyword arguments for customizing the plot. Plot appearance: title : str, optional Title of the plot, by default 'Array Plot'. title_size : int, optional Title font size, by default 15. cmap : str, optional Colormap name, by default 'coolwarm_r'. vmin : float, optional Minimum value for color scaling, by default min(array). vmax : float, optional Maximum value for color scaling, by default max(array). Color bar options: cbar_orientation : str, optional Orientation of the color bar, by default 'vertical'. Can be 'horizontal' or 'vertical'. cbar_label_rotation : float, optional Rotation angle of the color bar label, by default -90. cbar_label_location : str, optional Location of the color bar label, by default 'bottom'. Options: 'top', 'bottom', 'center', 'baseline', 'center_baseline'. cbar_length : float, optional Ratio to control the height/width of the color bar, by default 0.75. ticks_spacing : int, optional Spacing between ticks on the color bar, by default 2. cbar_label_size : int, optional Font size of the color bar label, by default 12. cbar_label : str, optional Label text for the color bar, by default 'Value'. Color scale options: color_scale : str, optional Type of color scaling to use, by default 'linear'. Options: - 'linear': Linear scale - 'power': Power-law normalization - 'sym-lognorm': Symmetrical logarithmic scale - 'boundary-norm': Discrete intervals based on boundaries - 'midpoint': Scale split at a specified midpoint gamma : float, optional Exponent for 'power' color scale, by default 0.5. Values < 1 emphasize lower values, values > 1 emphasize higher values. line_threshold : float, optional Threshold for 'sym-lognorm' color scale, by default 0.0001. line_scale : float, optional Scale factor for 'sym-lognorm' color scale, by default 0.001. bounds : List, optional Boundaries for 'boundary-norm' color scale, by default None. Defines the discrete intervals for color mapping. midpoint : float, optional Midpoint value for 'midpoint' color scale, by default 0. Cell value display options: display_cell_value : bool, optional Whether to display the values of cells as text, by default False. num_size : int, optional Font size of the cell value text, by default 8. background_color_threshold : float, optional Threshold for cell value text color, by default None. If cell value > threshold, text is black; otherwise, text is white. If None, uses max(array)/2 as the threshold.	{}

Returns:

Type	Description
Tuple[Figure, Axes]	A tuple containing: - fig: The matplotlib Figure object - ax: The matplotlib Axes object

Raises:

Type	Description
ValueError	If an invalid keyword argument is provided.

Examples:

• Basic array plot:

  >>> import numpy as np
  >>> from cleopatra.array_glyph import ArrayGlyph
  >>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
  >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Customized Plot", title_size=18)
  >>> fig, ax = array.plot()




• Color bar customization:

  • Create an array and instantiate the Array object with custom options.

    >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Customized color bar", title_size=18)
    >>> fig, ax = array.plot(
    ...     cbar_orientation="horizontal",
    ...     cbar_label_rotation=-90,
    ...     cbar_label_location="center",
    ...     cbar_length=0.7,
    ...     cbar_label_size=12,
    ...     cbar_label="Discharge m3/s",
    ...     ticks_spacing=5,
    ...     color_scale="linear",
    ...     cmap="coolwarm_r",
    ... )




• Display values for each cell:

  • you can display the values for each cell by using thr parameter display_cell_value, and customize how the values are displayed using the parameter background_color_threshold and num_size.

    >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Display array values", title_size=18)
    >>> fig, ax = array.plot(
    ...     display_cell_value=True,
    ...     num_size=12
    ... )




• Plot points at specific locations in the array:

  • you can display points in specific cells in the array and also display a value for each of these points. The point parameter takes an array with the first column as the values to be displayed on top of the points, the second and third columns are the row and column index of the point in the array.

  • The point_color and point_size parameters are used to customize the appearance of the points, while the pid_color and pid_size parameters are used to customize the appearance of the point IDs/text.

    >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Display Points", title_size=14)
    >>> points = np.array([[1, 0, 0], [2, 1, 1], [3, 2, 2]])
    >>> fig, ax = array.plot(
    ...     points=points,
    ...     point_color="black",
    ...     point_size=100,
    ...     pid_color="orange",
    ...     pid_size=30,
    ... )




• Color scale customization:

  • Power scale (with different gamma values).

    • The default power scale uses a gamma value of 0.5.

      >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Power scale", title_size=18)
      >>> fig, ax = array.plot(
      ...     cbar_label="Discharge m3/s",
      ...     color_scale="power",
      ...     cmap="coolwarm_r",
      ...     cbar_label_rotation=-90,
      ... )




    • change the gamma of 0.8 (emphasizes higher values less).

      >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Power scale - gamma=0.8", title_size=18)
      >>> fig, ax = array.plot(
      ...     color_scale="power",
      ...     gamma=0.8,
      ...     cmap="coolwarm_r",
      ...     cbar_label_rotation=-90,
      ...     cbar_label="Discharge m3/s",
      ... )




    • change the gamma of 0.1 (emphasizes higher values more).

      >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Power scale - gamma=0.1", title_size=18)
      >>> fig, ax = array.plot(
      ...     color_scale="power",
      ...     gamma=0.1,
      ...     cmap="coolwarm_r",
      ...     cbar_label_rotation=-90,
      ...     cbar_label="Discharge m3/s",
      ... )




  • Logarithmic scale.

    • the logarithmic scale uses to parameters line_threshold and line_scale with a default value if 0.0001, and 0.001 respectively.

      >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Logarithmic scale", title_size=18)
      >>> fig, ax = array.plot(
      ...     cbar_label="Discharge m3/s",
      ...     color_scale="sym-lognorm",
      ...     cmap="coolwarm_r",
      ...     cbar_label_rotation=-90,
      ... )




    • you can change the line_threshold and line_scale values.

      >>> array = ArrayGlyph(
      ...     arr, figsize=(6, 6), title="Logarithmic scale: Customized Parameter", title_size=12
      ... )
      >>> fig, ax = array.plot(
      ...     cbar_label_rotation=-90,
      ...     cbar_label="Discharge m3/s",
      ...     color_scale="sym-lognorm",
      ...     cmap="coolwarm_r",
      ...     line_threshold=0.015,
      ...     line_scale=0.1,
      ... )




  • Defined boundary scale.

    >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Defined boundary scale", title_size=18)
    >>> fig, ax = array.plot(
    ...     cbar_label_rotation=-90,
    ...     cbar_label="Discharge m3/s",
    ...     color_scale="boundary-norm",
    ...     cmap="coolwarm_r",
    ... )



    • You can also define the boundaries.

      >>> array = ArrayGlyph(
      ...     arr, figsize=(6, 6), title="Defined boundary scale: defined bounds", title_size=18
      ... )
      >>> bounds = [0, 5, 10]
      >>> fig, ax = array.plot(
      ...     cbar_label_rotation=-90,
      ...     cbar_label="Discharge m3/s",
      ...     color_scale="boundary-norm",
      ...     bounds=bounds,
      ...     cmap="coolwarm_r",
      ... )




  • Midpoint scale.

    in the midpoint scale you can define a value that splits the scale into half.

    >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Midpoint scale", title_size=18)
    >>> fig, ax = array.plot(
    ...     cbar_label_rotation=-90,
    ...     cbar_label="Discharge m3/s",
    ...     color_scale="midpoint",
    ...     cmap="coolwarm_r",
    ...     midpoint=2,
    ... )




Source code in cleopatra/array_glyph.py

def plot(
    self,
    points: np.ndarray = None,
    point_color: str = "red",
    point_size: Union[int, float] = 100,
    pid_color="blue",
    pid_size: Union[int, float] = 10,
    **kwargs,
) -> Tuple[Figure, Axes]:
    """Plot the array with customizable visualization options.

    This method creates a visualization of the array with various customization options
    including color scales, color bars, cell value display, and point annotations.
    It supports both regular arrays and RGB arrays.

    Parameters
    ----------
    points : np.ndarray, optional
        Points to display on the array, by default None.
        Should be a 3-column array where:
        - First column: values to display for each point
        - Second column: row indices of the points in the array
        - Third column: column indices of the points in the array
    point_color : str, optional
        Color of the points, by default "red".
        Any valid matplotlib color string.
    point_size : Union[int, float], optional
        Size of the points, by default 100.
        Controls the marker size.
    pid_color : str, optional
        Color of the point value annotations, by default "blue".
        Any valid matplotlib color string.
    pid_size : Union[int, float], optional
        Size of the point value annotations, by default 10.
        Controls the font size of the annotations.
    **kwargs : dict
        Additional keyword arguments for customizing the plot.

        Plot appearance:
        ---------------
        title : str, optional
            Title of the plot, by default 'Array Plot'.
        title_size : int, optional
            Title font size, by default 15.
        cmap : str, optional
            Colormap name, by default 'coolwarm_r'.
        vmin : float, optional
            Minimum value for color scaling, by default min(array).
        vmax : float, optional
            Maximum value for color scaling, by default max(array).

        Color bar options:
        ----------------
        cbar_orientation : str, optional
            Orientation of the color bar, by default 'vertical'.
            Can be 'horizontal' or 'vertical'.
        cbar_label_rotation : float, optional
            Rotation angle of the color bar label, by default -90.
        cbar_label_location : str, optional
            Location of the color bar label, by default 'bottom'.
            Options: 'top', 'bottom', 'center', 'baseline', 'center_baseline'.
        cbar_length : float, optional
            Ratio to control the height/width of the color bar, by default 0.75.
        ticks_spacing : int, optional
            Spacing between ticks on the color bar, by default 2.
        cbar_label_size : int, optional
            Font size of the color bar label, by default 12.
        cbar_label : str, optional
            Label text for the color bar, by default 'Value'.

        Color scale options:
        ------------------
        color_scale : str, optional
            Type of color scaling to use, by default 'linear'.
            Options:
            - 'linear': Linear scale
            - 'power': Power-law normalization
            - 'sym-lognorm': Symmetrical logarithmic scale
            - 'boundary-norm': Discrete intervals based on boundaries
            - 'midpoint': Scale split at a specified midpoint
        gamma : float, optional
            Exponent for 'power' color scale, by default 0.5.
            Values < 1 emphasize lower values, values > 1 emphasize higher values.
        line_threshold : float, optional
            Threshold for 'sym-lognorm' color scale, by default 0.0001.
        line_scale : float, optional
            Scale factor for 'sym-lognorm' color scale, by default 0.001.
        bounds : List, optional
            Boundaries for 'boundary-norm' color scale, by default None.
            Defines the discrete intervals for color mapping.
        midpoint : float, optional
            Midpoint value for 'midpoint' color scale, by default 0.

        Cell value display options:
        -------------------------
        display_cell_value : bool, optional
            Whether to display the values of cells as text, by default False.
        num_size : int, optional
            Font size of the cell value text, by default 8.
        background_color_threshold : float, optional
            Threshold for cell value text color, by default None.
            If cell value > threshold, text is black; otherwise, text is white.
            If None, uses max(array)/2 as the threshold.

    Returns
    -------
    Tuple[matplotlib.figure.Figure, matplotlib.axes.Axes]
        A tuple containing:
        - fig: The matplotlib Figure object
        - ax: The matplotlib Axes object

    Raises
    ------
    ValueError
        If an invalid keyword argument is provided.

    Examples
    --------
    - Basic array plot:

        ```python
        >>> import numpy as np
        >>> from cleopatra.array_glyph import ArrayGlyph
        >>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
        >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Customized Plot", title_size=18)
        >>> fig, ax = array.plot()

        ```
    ![array-plot](./../_images/array_glyph/array-plot.png)

    - Color bar customization:

        - Create an array and instantiate the `Array` object with custom options.
            ```python
            >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Customized color bar", title_size=18)
            >>> fig, ax = array.plot(
            ...     cbar_orientation="horizontal",
            ...     cbar_label_rotation=-90,
            ...     cbar_label_location="center",
            ...     cbar_length=0.7,
            ...     cbar_label_size=12,
            ...     cbar_label="Discharge m3/s",
            ...     ticks_spacing=5,
            ...     color_scale="linear",
            ...     cmap="coolwarm_r",
            ... )

            ```
            ![color-bar-customization](./../_images/array_glyph/color-bar-customization.png)

    - Display values for each cell:

        - you can display the values for each cell by using thr parameter `display_cell_value`, and customize how
            the values are displayed using the parameter `background_color_threshold` and `num_size`.

            ```python
            >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Display array values", title_size=18)
            >>> fig, ax = array.plot(
            ...     display_cell_value=True,
            ...     num_size=12
            ... )

            ```
            ![display-cell-values](./../_images/array_glyph/display-cell-values.png)

    - Plot points at specific locations in the array:

        - you can display points in specific cells in the array and also display a value for each of these points.
            The point parameter takes an array with the first column as the values to be displayed on top of the
            points, the second and third columns are the row and column index of the point in the array.
        - The `point_color` and `point_size` parameters are used to customize the appearance of the points,
            while the `pid_color` and `pid_size` parameters are used to customize the appearance of the point
            IDs/text.

            ```python
            >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Display Points", title_size=14)
            >>> points = np.array([[1, 0, 0], [2, 1, 1], [3, 2, 2]])
            >>> fig, ax = array.plot(
            ...     points=points,
            ...     point_color="black",
            ...     point_size=100,
            ...     pid_color="orange",
            ...     pid_size=30,
            ... )

            ```
            ![display-points](./../_images/array_glyph/display-points.png)

    - Color scale customization:

        - Power scale (with different gamma values).

            - The default power scale uses a gamma value of 0.5.

                ```python
                >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Power scale", title_size=18)
                >>> fig, ax = array.plot(
                ...     cbar_label="Discharge m3/s",
                ...     color_scale="power",
                ...     cmap="coolwarm_r",
                ...     cbar_label_rotation=-90,
                ... )

                ```
                ![power-scale](./../_images/array_glyph/power-scale.png)

            - change the gamma of 0.8 (emphasizes higher values less).

                ```python
                >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Power scale - gamma=0.8", title_size=18)
                >>> fig, ax = array.plot(
                ...     color_scale="power",
                ...     gamma=0.8,
                ...     cmap="coolwarm_r",
                ...     cbar_label_rotation=-90,
                ...     cbar_label="Discharge m3/s",
                ... )

                ```
                ![power-scale-gamma-0.8](./../_images/array_glyph/power-scale-gamma-0.8.png)

            - change the gamma of 0.1 (emphasizes higher values more).

                ```python
                >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Power scale - gamma=0.1", title_size=18)
                >>> fig, ax = array.plot(
                ...     color_scale="power",
                ...     gamma=0.1,
                ...     cmap="coolwarm_r",
                ...     cbar_label_rotation=-90,
                ...     cbar_label="Discharge m3/s",
                ... )

                ```
                ![power-scale-gamma-0.1](./../_images/array_glyph/power-scale-gamma-0.1.png)

        - Logarithmic scale.

            - the logarithmic scale uses to parameters `line_threshold` and `line_scale` with a default
            value if 0.0001, and 0.001 respectively.
                ```python
                >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Logarithmic scale", title_size=18)
                >>> fig, ax = array.plot(
                ...     cbar_label="Discharge m3/s",
                ...     color_scale="sym-lognorm",
                ...     cmap="coolwarm_r",
                ...     cbar_label_rotation=-90,
                ... )

                ```
                ![log-scale](./../_images/array_glyph/log-scale.png)

            - you can change the `line_threshold` and `line_scale` values.
                ```python
                >>> array = ArrayGlyph(
                ...     arr, figsize=(6, 6), title="Logarithmic scale: Customized Parameter", title_size=12
                ... )
                >>> fig, ax = array.plot(
                ...     cbar_label_rotation=-90,
                ...     cbar_label="Discharge m3/s",
                ...     color_scale="sym-lognorm",
                ...     cmap="coolwarm_r",
                ...     line_threshold=0.015,
                ...     line_scale=0.1,
                ... )

                ```
                ![log-scale](./../_images/array_glyph/log-scale-custom-parameters.png)

        - Defined boundary scale.
            ```python
            >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Defined boundary scale", title_size=18)
            >>> fig, ax = array.plot(
            ...     cbar_label_rotation=-90,
            ...     cbar_label="Discharge m3/s",
            ...     color_scale="boundary-norm",
            ...     cmap="coolwarm_r",
            ... )

            ```
            ![boundary-scale](./../_images/array_glyph/boundary-scale.png)

            - You can also define the boundaries.
                ```python
                >>> array = ArrayGlyph(
                ...     arr, figsize=(6, 6), title="Defined boundary scale: defined bounds", title_size=18
                ... )
                >>> bounds = [0, 5, 10]
                >>> fig, ax = array.plot(
                ...     cbar_label_rotation=-90,
                ...     cbar_label="Discharge m3/s",
                ...     color_scale="boundary-norm",
                ...     bounds=bounds,
                ...     cmap="coolwarm_r",
                ... )

                ```
                ![boundary-scale-defined-bounds](./../_images/array_glyph/boundary-scale-defined-bounds.png)

        - Midpoint scale.

            in the midpoint scale you can define a value that splits the scale into half.
            ```python
            >>> array = ArrayGlyph(arr, figsize=(6, 6), title="Midpoint scale", title_size=18)
            >>> fig, ax = array.plot(
            ...     cbar_label_rotation=-90,
            ...     cbar_label="Discharge m3/s",
            ...     color_scale="midpoint",
            ...     cmap="coolwarm_r",
            ...     midpoint=2,
            ... )

            ```
            ![midpoint-scale-costom-parameters](./../_images/array_glyph/midpoint-scale-costom-parameters.png)
    """
    for key, val in kwargs.items():
        if key not in self.default_options.keys():
            raise ValueError(
                f"The given keyword argument:{key} is not correct, possible parameters are,"
                f" {DEFAULT_OPTIONS}"
            )
        else:
            self.default_options[key] = val

    if self.fig is None:
        self.fig, self.ax = self.create_figure_axes()

    arr = self.arr
    fig, ax = self.fig, self.ax

    if self.rgb:
        ax.imshow(arr, extent=self.extent)
    else:
        # if user did not input ticks spacing use the calculated one.
        if "ticks_spacing" in kwargs.keys():
            self.default_options["ticks_spacing"] = kwargs["ticks_spacing"]
        else:
            self.default_options["ticks_spacing"] = self.ticks_spacing

        if "vmin" in kwargs.keys():
            self.default_options["vmin"] = kwargs["vmin"]
        else:
            self.default_options["vmin"] = self.vmin

        if "vmax" in kwargs.keys():
            self.default_options["vmax"] = kwargs["vmax"]
        else:
            self.default_options["vmax"] = self.vmax

        # creating the ticks/bounds
        ticks = self.get_ticks()
        im, cbar_kw = self._plot_im_get_cbar_kw(ax, arr, ticks)

        # Create colorbar
        self.create_color_bar(ax, im, cbar_kw)

    ax.set_title(
        self.default_options["title"], fontsize=self.default_options["title_size"]
    )

    if self.extent is None:
        ax.set_xticklabels([])
        ax.set_yticklabels([])
        ax.set_xticks([])
        ax.set_yticks([])

    optional_display = {}
    if self.default_options["display_cell_value"]:
        indices = get_indices2(arr, [np.nan])
        optional_display["cell_text_value"] = self._plot_text(
            ax, arr, indices, self.default_options
        )

    if points is not None:
        row = points[:, 1]
        col = points[:, 2]
        optional_display["points_scatter"] = ax.scatter(
            col, row, color=point_color, s=point_size
        )
        optional_display["points_id"] = self._plot_point_values(
            ax, points, pid_color, pid_size
        )

    # # Normalize the threshold to the image color range.
    # if self.default_options["background_color_threshold"] is not None:
    #     im.norm(self.default_options["background_color_threshold"])
    # else:
    #     im.norm(self.vmax) / 2.0
    plt.show()
    return fig, ax

prepare_array(array, rgb=None, surface_reflectance=None, cutoff=None, percentile=None)

Prepare an array for RGB visualization.

This method processes a multi-band array to create an RGB image suitable for visualization. It can normalize the data using either percentile-based scaling or surface reflectance values.

Parameters:

Name	Type	Description	Default
array	ndarray	The input array containing multiple bands. For RGB visualization, this should be a 3D array where the first dimension represents the bands.	required
rgb	List[int]	The indices of the red, green, and blue bands in the given array, by default None. If None, assumes the order is [3, 2, 1] (common for Sentinel-2 data).	None
surface_reflectance	int	Surface reflectance value for normalizing satellite data, by default None. Typically 10000 for Sentinel-2 data or 255 for 8-bit imagery. Used to scale values to the range [0, 1].	None
cutoff	List	Clip the range of pixel values for each band, by default None. Takes only pixel values from 0 to the value of the cutoff and scales them back to between 0 and 1. Should be a list with one value per band.	None
percentile	int	The percentile value to be used for scaling the array values, by default None. Used to enhance contrast by stretching the histogram. If provided, this takes precedence over surface_reflectance.	None

Returns:

Type

Description

ndarray

The prepared array with shape (height, width, 3) suitable for RGB visualization. Values are normalized to the range [0, 1]. the rgb 3d array is converted into 2d array to be plotted using the plt.imshow function. a float32 array normalized between 0 and 1 using the percentile values or the surface_reflectance. if the percentile or surface_reflectance values are not given, the function just reorders the values to have the red-green-blue order.

Raises:

Type	Description
ValueError	If the array shape is incompatible with the provided RGB indices.

Notes

- The `prepare_array` function is called in the constructor of the `ArrayGlyph` class to prepare the array,
  so you can provide the same parameters of the `prepare_array` function to the `ArrayGlyph constructor`.
- The prepare function moves the first axes (the channel axis) to the last axes, and then scales the array
  using the percentile values. If the percentile is not given, the function scales the array using the
  surface reflectance values. If the surface reflectance is not given, the function scales the array using
  the cutoff values. If the cutoff is not given, the function scales the array using the sentinel data

Examples:

Prepare an array using percentile-based scaling:

>>> import numpy as np
>>> from cleopatra.array_glyph import ArrayGlyph
>>> # Create a 3-band array (e.g., satellite image)
>>> bands = np.random.randint(0, 10000, size=(3, 100, 100))
>>> glyph = ArrayGlyph(np.zeros((1, 1)))  # Dummy initialization
>>> rgb_array = glyph.prepare_array(bands, rgb=[0, 1, 2], percentile=2)
>>> rgb_array.shape
(100, 100, 3)
>>> np.all((0 <= rgb_array) & (rgb_array <= 1))
np.True_

Prepare an array using surface reflectance normalization:

>>> rgb_array = glyph.prepare_array(bands, rgb=[0, 1, 2], surface_reflectance=10000)
>>> rgb_array.shape
(100, 100, 3)
>>> np.all((0 <= rgb_array) & (rgb_array <= 1))
np.True_

Prepare an array with cutoff values:

>>> rgb_array = glyph.prepare_array(
...     bands, rgb=[0, 1, 2], surface_reflectance=10000, cutoff=[5000, 5000, 5000]
... )
>>> rgb_array.shape
(100, 100, 3)
>>> np.all((0 <= rgb_array) & (rgb_array <= 1))
np.True_

• Create an array and instantiate the ArrayGlyph class.

  >>> import numpy as np
  >>> arr = np.random.randint(0, 255, size=(3, 5, 5)).astype(np.float32)
  >>> array_glyph = ArrayGlyph(arr)
  >>> print(array_glyph.arr.shape)
  (3, 5, 5)


  rgb channels:
  • Now let's use the prepare_array function with rgb channels as [0, 1, 2]. so the finction does not to reorder the chennels. but it just needs to move the first axis to the last axis.

    >>> rgb_array = array_glyph.prepare_array(arr, rgb=[0, 1, 2])
    >>> print(rgb_array.shape)
    (5, 5, 3)


  • If we compare the values of the first channel in the original array with the first array in the rgb array it should be the same.

    >>> np.testing.assert_equal(arr[0, :, :],rgb_array[:, :, 0])


    surface_reflectance:
  • if you provide the surface reflectance value, the function will scale the array using the surface reflectance value to a normalized rgb values.

    >>> array_glyph = ArrayGlyph(arr)
    >>> rgb_array = array_glyph.prepare_array(arr, surface_reflectance=10000, rgb=[0, 1, 2])
    >>> print(rgb_array.shape)
    (5, 5, 3)


  • if you print the values of the first channel, you will find all the values are between 0 and 1.

    >>> print(rgb_array[:, :, 0]) # doctest: +SKIP
    [[0.0195 0.02   0.0109 0.0211 0.0087]
     [0.0112 0.0221 0.0035 0.0234 0.0141]
     [0.0116 0.0188 0.0001 0.0176 0.    ]
     [0.0014 0.0147 0.0043 0.0167 0.0117]
     [0.0083 0.0139 0.0186 0.02   0.0058]]


  • With the surface_reflectance parameter, you can also use the cutoff parameter to affect values that are above it, by rescaling them.

    >>> rgb_array = array_glyph.prepare_array(
    ...     arr, surface_reflectance=10000, rgb=[0, 1, 2], cutoff=[0.8, 0.8, 0.8]
    ... )
    >>> print(rgb_array[:, :, 0]) # doctest: +SKIP
    [[0.     0.     0.     0.     0.    ]
     [1.     1.     1.     1.     1.    ]
     [1.     1.     1.     1.     1.    ]
     [0.0014 0.0147 0.0043 0.0167 0.0117]
     [0.0083 0.0139 0.0186 0.02   0.0058]]


Source code in cleopatra/array_glyph.py

def prepare_array(
    self,
    array: np.ndarray,
    rgb: List[int] = None,
    surface_reflectance: int = None,
    cutoff: List = None,
    percentile: int = None,
) -> np.ndarray:
    """Prepare an array for RGB visualization.

    This method processes a multi-band array to create an RGB image suitable for visualization.
    It can normalize the data using either percentile-based scaling or surface reflectance values.

    Parameters
    ----------
    array : np.ndarray
        The input array containing multiple bands. For RGB visualization,
        this should be a 3D array where the first dimension represents the bands.
    rgb : List[int], optional
        The indices of the red, green, and blue bands in the given array, by default None.
        If None, assumes the order is [3, 2, 1] (common for Sentinel-2 data).
    surface_reflectance : int, optional
        Surface reflectance value for normalizing satellite data, by default None.
        Typically 10000 for Sentinel-2 data or 255 for 8-bit imagery.
        Used to scale values to the range [0, 1].
    cutoff : List, optional
        Clip the range of pixel values for each band, by default None.
        Takes only pixel values from 0 to the value of the cutoff and scales them back to between 0 and 1.
        Should be a list with one value per band.
    percentile : int, optional
        The percentile value to be used for scaling the array values, by default None.
        Used to enhance contrast by stretching the histogram.
        If provided, this takes precedence over surface_reflectance.

    Returns
    -------
    np.ndarray
        The prepared array with shape (height, width, 3) suitable for RGB visualization.
        Values are normalized to the range [0, 1].
        the rgb 3d array is converted into 2d array to be plotted using the plt.imshow function.
        a float32 array normalized between 0 and 1 using the `percentile` values or the `surface_reflectance`.
        if the `percentile` or `surface_reflectance` values are not given, the function just reorders the values
        to have the red-green-blue order.

    Raises
    ------
    ValueError
        If the array shape is incompatible with the provided RGB indices.

    Notes
    -----
        - The `prepare_array` function is called in the constructor of the `ArrayGlyph` class to prepare the array,
          so you can provide the same parameters of the `prepare_array` function to the `ArrayGlyph constructor`.
        - The prepare function moves the first axes (the channel axis) to the last axes, and then scales the array
          using the percentile values. If the percentile is not given, the function scales the array using the
          surface reflectance values. If the surface reflectance is not given, the function scales the array using
          the cutoff values. If the cutoff is not given, the function scales the array using the sentinel data

    Examples
    --------
    Prepare an array using percentile-based scaling:
        ```python
        >>> import numpy as np
        >>> from cleopatra.array_glyph import ArrayGlyph
        >>> # Create a 3-band array (e.g., satellite image)
        >>> bands = np.random.randint(0, 10000, size=(3, 100, 100))
        >>> glyph = ArrayGlyph(np.zeros((1, 1)))  # Dummy initialization
        >>> rgb_array = glyph.prepare_array(bands, rgb=[0, 1, 2], percentile=2)
        >>> rgb_array.shape
        (100, 100, 3)
        >>> np.all((0 <= rgb_array) & (rgb_array <= 1))
        np.True_

        ```
    Prepare an array using surface reflectance normalization:
        ```python
        >>> rgb_array = glyph.prepare_array(bands, rgb=[0, 1, 2], surface_reflectance=10000)
        >>> rgb_array.shape
        (100, 100, 3)
        >>> np.all((0 <= rgb_array) & (rgb_array <= 1))
        np.True_

        ```
    Prepare an array with cutoff values:
        ```python
        >>> rgb_array = glyph.prepare_array(
        ...     bands, rgb=[0, 1, 2], surface_reflectance=10000, cutoff=[5000, 5000, 5000]
        ... )
        >>> rgb_array.shape
        (100, 100, 3)
        >>> np.all((0 <= rgb_array) & (rgb_array <= 1))
        np.True_

        ```

    - Create an array and instantiate the `ArrayGlyph` class.
        ```python
        >>> import numpy as np
        >>> arr = np.random.randint(0, 255, size=(3, 5, 5)).astype(np.float32)
        >>> array_glyph = ArrayGlyph(arr)
        >>> print(array_glyph.arr.shape)
        (3, 5, 5)

        ```
    `rgb` channels:
        - Now let's use the `prepare_array` function with `rgb` channels as [0, 1, 2]. so the finction does not to
            reorder the chennels. but it just needs to move the first axis to the last axis.
            ```python
            >>> rgb_array = array_glyph.prepare_array(arr, rgb=[0, 1, 2])
            >>> print(rgb_array.shape)
            (5, 5, 3)

            ```
        - If we compare the values of the first channel in the original array with the first array in the rgb array it
            should be the same.
            ```python
            >>> np.testing.assert_equal(arr[0, :, :],rgb_array[:, :, 0])

            ```
    surface_reflectance:
        - if you provide the surface reflectance value, the function will scale the array using the surface reflectance
            value to a normalized rgb values.
            ```python
            >>> array_glyph = ArrayGlyph(arr)
            >>> rgb_array = array_glyph.prepare_array(arr, surface_reflectance=10000, rgb=[0, 1, 2])
            >>> print(rgb_array.shape)
            (5, 5, 3)

            ```
        - if you print the values of the first channel, you will find all the values are between 0 and 1.
            ```python
            >>> print(rgb_array[:, :, 0]) # doctest: +SKIP
            [[0.0195 0.02   0.0109 0.0211 0.0087]
             [0.0112 0.0221 0.0035 0.0234 0.0141]
             [0.0116 0.0188 0.0001 0.0176 0.    ]
             [0.0014 0.0147 0.0043 0.0167 0.0117]
             [0.0083 0.0139 0.0186 0.02   0.0058]]

            ```
        - With the `surface_reflectance` parameter, you can also use the `cutoff` parameter to affect values that
            are above it, by rescaling them.
            ```python
            >>> rgb_array = array_glyph.prepare_array(
            ...     arr, surface_reflectance=10000, rgb=[0, 1, 2], cutoff=[0.8, 0.8, 0.8]
            ... )
            >>> print(rgb_array[:, :, 0]) # doctest: +SKIP
            [[0.     0.     0.     0.     0.    ]
             [1.     1.     1.     1.     1.    ]
             [1.     1.     1.     1.     1.    ]
             [0.0014 0.0147 0.0043 0.0167 0.0117]
             [0.0083 0.0139 0.0186 0.02   0.0058]]

            ```
    """
    # take the rgb arrays and reorder them to have the red-green-blue, if the order is not given, assume the
    # order as sentinel data. [3, 2, 1]
    array = array[rgb].transpose(1, 2, 0)

    if percentile is not None:
        array = self.scale_percentile(array, percentile=percentile)
    elif surface_reflectance is not None:
        array = self._prepare_sentinel_rgb(
            array,
            rgb=rgb,
            surface_reflectance=surface_reflectance,
            cutoff=cutoff,
        )
    return array

save_animation(path, fps=2)

Save the animation to a file.

This method saves the animation created by the animate method to a file. The format of the output file is determined by the file extension in the path.

Parameters:

Name	Type	Description	Default
path	str	The file path where the animation will be saved. The file extension determines the output format. Supported formats: gif, mov, avi, mp4.	required
fps	int	Frames per second for the saved animation, by default 2. Higher values create faster animations, lower values create slower animations.	2

Raises:

Type	Description
ValueError	If the file extension is not one of the supported formats.
FileNotFoundError	If FFmpeg is not installed (required for mov, avi, and mp4 formats).

Notes

• For GIF format, the PillowWriter is used.
• For MOV, AVI, and MP4 formats, FFMpegWriter is used, which requires FFmpeg to be installed.
• You can download FFmpeg from https://ffmpeg.org/

Examples:

Save an animation as a GIF file:

>>> import numpy as np
>>> from cleopatra.array_glyph import ArrayGlyph
>>> # Create a 3D array with 5 frames, each 10x10
>>> arr = np.random.randint(1, 10, size=(5, 10, 10))
>>> frame_labels = ["Frame 1", "Frame 2", "Frame 3", "Frame 4", "Frame 5"]
>>> animated_array = ArrayGlyph(arr)
>>> anim_obj = animated_array.animate(frame_labels)
>>> animated_array.save_animation("animation.gif") # doctest: +SKIP

Save with a higher frame rate for a faster animation:

>>> animated_array.save_animation("animation.gif", fps=5) # doctest: +SKIP

Save in MP4 format (requires FFmpeg):

>>> animated_array.save_animation("animation.mp4", fps=10) # doctest: +SKIP

Source code in cleopatra/array_glyph.py

def save_animation(self, path: str, fps: int = 2):
    """Save the animation to a file.

    This method saves the animation created by the `animate` method to a file.
    The format of the output file is determined by the file extension in the path.

    Parameters
    ----------
    path : str
        The file path where the animation will be saved.
        The file extension determines the output format.
        Supported formats: gif, mov, avi, mp4.
    fps : int, optional
        Frames per second for the saved animation, by default 2.
        Higher values create faster animations, lower values create slower animations.

    Raises
    ------
    ValueError
        If the file extension is not one of the supported formats.
    FileNotFoundError
        If FFmpeg is not installed (required for mov, avi, and mp4 formats).

    Notes
    -----
    - For GIF format, the PillowWriter is used.
    - For MOV, AVI, and MP4 formats, FFMpegWriter is used, which requires FFmpeg to be installed.
    - You can download FFmpeg from https://ffmpeg.org/

    Examples
    --------
    Save an animation as a GIF file:
    ```python
    >>> import numpy as np
    >>> from cleopatra.array_glyph import ArrayGlyph
    >>> # Create a 3D array with 5 frames, each 10x10
    >>> arr = np.random.randint(1, 10, size=(5, 10, 10))
    >>> frame_labels = ["Frame 1", "Frame 2", "Frame 3", "Frame 4", "Frame 5"]
    >>> animated_array = ArrayGlyph(arr)
    >>> anim_obj = animated_array.animate(frame_labels)
    >>> animated_array.save_animation("animation.gif") # doctest: +SKIP

    ```
    Save with a higher frame rate for a faster animation:
    ```python
    >>> animated_array.save_animation("animation.gif", fps=5) # doctest: +SKIP

    ```
    Save in MP4 format (requires FFmpeg):
    ```python
    >>> animated_array.save_animation("animation.mp4", fps=10) # doctest: +SKIP

    ```
    """
    video_format = path.split(".")[-1]
    if video_format not in SUPPORTED_VIDEO_FORMAT:
        raise ValueError(
            f"The given extension {video_format} implies a format that is not supported, "
            f"only {SUPPORTED_VIDEO_FORMAT} are supported"
        )

    if video_format == "gif":
        writer_gif = animation.PillowWriter(fps=fps)
        self.anim.save(path, writer=writer_gif)
    else:
        try:
            if video_format == "avi" or video_format == "mov":
                writer_video = animation.FFMpegWriter(fps=fps, bitrate=1800)
                self.anim.save(path, writer=writer_video)
            elif video_format == "mp4":
                writer_mp4 = animation.FFMpegWriter(fps=fps, bitrate=1800)
                self.anim.save(path, writer=writer_mp4)
        except FileNotFoundError:
            print(
                "Please visit https://ffmpeg.org/ and download a version of ffmpeg compatible with your operating"
                "system, for more details please check the method definition"
            )

scale_percentile(arr, percentile=1) staticmethod

Scale an array using percentile-based contrast stretching.

This method enhances the contrast of an image by stretching the histogram based on percentile values. It calculates the lower and upper percentile values for each band and normalizes the data to the range [0, 1].

Parameters:

Name	Type	Description	Default
arr	ndarray	The array to be scaled, with shape (height, width, bands). Typically an RGB image with 3 bands.	required
percentile	int	The percentile value to be used for scaling, by default 1. This value determines how much of the histogram tails to exclude. Higher values result in more contrast stretching. Typical values range from 1 to 5.	1

Returns:

Type	Description
ndarray	The scaled array, normalized between 0 and 1, with the same shape as input. Data type is float32.

Notes

The method works by: 1. Computing the lower percentile value for each band 2. Computing the upper percentile value (100 - percentile) for each band 3. Normalizing each band using these percentile values 4. Clipping values to the range [0, 1]

This is particularly useful for visualizing satellite imagery with high dynamic range.

Examples:

Scale a single-band array:

>>> import numpy as np
>>> from cleopatra.array_glyph import ArrayGlyph
>>> # Create a test array with values between 0 and 10000
>>> test_array = np.random.randint(0, 10000, size=(100, 100, 1))
>>> scaled = ArrayGlyph.scale_percentile(test_array, percentile=2)
>>> scaled.shape
(100, 100, 1)
>>> np.all((0 <= scaled) & (scaled <= 1))
np.True_

Scale an RGB array:

>>> rgb_array = np.random.randint(0, 10000, size=(100, 100, 3))
>>> scaled = ArrayGlyph.scale_percentile(rgb_array, percentile=2)
>>> scaled.shape
(100, 100, 3)
>>> np.all((0 <= scaled) & (scaled <= 1))
np.True_

Using different percentile values affects contrast:

>>> low_contrast = ArrayGlyph.scale_percentile(rgb_array, percentile=1)
>>> high_contrast = ArrayGlyph.scale_percentile(rgb_array, percentile=5)
>>> # Higher percentile typically results in higher contrast

Source code in cleopatra/array_glyph.py

@staticmethod
def scale_percentile(arr: np.ndarray, percentile: int = 1) -> np.ndarray:
    """Scale an array using percentile-based contrast stretching.

    This method enhances the contrast of an image by stretching the histogram
    based on percentile values. It calculates the lower and upper percentile values
    for each band and normalizes the data to the range [0, 1].

    Parameters
    ----------
    arr : np.ndarray
        The array to be scaled, with shape (height, width, bands).
        Typically an RGB image with 3 bands.
    percentile : int, optional
        The percentile value to be used for scaling, by default 1.
        This value determines how much of the histogram tails to exclude.
        Higher values result in more contrast stretching.
        Typical values range from 1 to 5.

    Returns
    -------
    np.ndarray
        The scaled array, normalized between 0 and 1, with the same shape as input.
        Data type is float32.

    Notes
    -----
    The method works by:
    1. Computing the lower percentile value for each band
    2. Computing the upper percentile value (100 - percentile) for each band
    3. Normalizing each band using these percentile values
    4. Clipping values to the range [0, 1]

    This is particularly useful for visualizing satellite imagery with high dynamic range.

    Examples
    --------
    Scale a single-band array:
    ```python
    >>> import numpy as np
    >>> from cleopatra.array_glyph import ArrayGlyph
    >>> # Create a test array with values between 0 and 10000
    >>> test_array = np.random.randint(0, 10000, size=(100, 100, 1))
    >>> scaled = ArrayGlyph.scale_percentile(test_array, percentile=2)
    >>> scaled.shape
    (100, 100, 1)
    >>> np.all((0 <= scaled) & (scaled <= 1))
    np.True_

    ```
    Scale an RGB array:
    ```python
    >>> rgb_array = np.random.randint(0, 10000, size=(100, 100, 3))
    >>> scaled = ArrayGlyph.scale_percentile(rgb_array, percentile=2)
    >>> scaled.shape
    (100, 100, 3)
    >>> np.all((0 <= scaled) & (scaled <= 1))
    np.True_

    ```
    Using different percentile values affects contrast:
    ```python
    >>> low_contrast = ArrayGlyph.scale_percentile(rgb_array, percentile=1)
    >>> high_contrast = ArrayGlyph.scale_percentile(rgb_array, percentile=5)
    >>> # Higher percentile typically results in higher contrast

    ```
    """
    rows, columns, bands = arr.shape
    # flatten image.
    arr = np.reshape(arr, [rows * columns, bands]).astype(np.float32)
    # lower percentile values (one value for each band).
    lower_percent = np.percentile(arr, percentile, axis=0)
    # 98 percentile values.
    upper_percent = np.percentile(arr, 100 - percentile, axis=0) - lower_percent
    # normalize the 3 bands using the percentile values for each band.
    arr = (arr - lower_percent[None, :]) / upper_percent[None, :]
    arr = np.reshape(arr, [rows, columns, bands])
    # discard outliers.
    arr = arr.clip(0, 1)

    return arr

scale_to_rgb(arr=None)

Create an RGB image.

Parameters:

Name	Type	Description	Default
arr	ndarray	array. if None, the array in the object will be used.	None

Examples:

>>> import numpy as np
>>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
>>> array = ArrayGlyph(arr)
>>> rgb_array = array.scale_to_rgb()
>>> print(rgb_array)
[[28 56 85]
 [113 141 170]
 [198 226 255]]
>>> print(rgb_array.dtype)
uint8

Source code in cleopatra/array_glyph.py

def scale_to_rgb(self, arr: np.ndarray = None) -> np.ndarray:
    """Create an RGB image.

    Parameters
    ----------
    arr: np.ndarray, default is None.
        array. if None, the array in the object will be used.

    Examples
    --------
    ```python
    >>> import numpy as np
    >>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
    >>> array = ArrayGlyph(arr)
    >>> rgb_array = array.scale_to_rgb()
    >>> print(rgb_array)
    [[28 56 85]
     [113 141 170]
     [198 226 255]]
    >>> print(rgb_array.dtype)
    uint8

    ```
    """
    if arr is None:
        arr = self.arr
    # This is done to scale the values between 0 and 255
    return (arr * 255 / arr.max()).astype("uint8")

to_image(arr=None)

Create an RGB image from an array.

convert the array to an image.

Parameters:

Name	Type	Description	Default
arr	ndarray	array. if None, the array in the object will be used.	None

Examples:

>>> import numpy as np
>>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
>>> array = ArrayGlyph(arr)
>>> image = array.to_image()
>>> print(image) # doctest: +SKIP
<PIL.Image.Image image mode=RGB size=3x3 at 0x7F5E0D2F4C40>

Source code in cleopatra/array_glyph.py

def to_image(self, arr: np.ndarray = None) -> Image.Image:
    """Create an RGB image from an array.

        convert the array to an image.

    Parameters
    ----------
    arr: np.ndarray, default is None.
        array. if None, the array in the object will be used.

    Examples
    --------
    ```python
    >>> import numpy as np
    >>> arr = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
    >>> array = ArrayGlyph(arr)
    >>> image = array.to_image()
    >>> print(image) # doctest: +SKIP
    <PIL.Image.Image image mode=RGB size=3x3 at 0x7F5E0D2F4C40>

    ```
    """
    if arr is None:
        arr = self.arr
    # This is done to scale the values between 0 and 255
    arr = arr if arr.dtype == "uint8" else self.scale_to_rgb()
    return Image.fromarray(arr).convert("RGB")

Examples

Basic Array Plot

import numpy as np
from cleopatra.array_glyph import ArrayGlyph

# Create a sample array
array = np.random.rand(10, 10)

# Create an ArrayGlyph object
array_glyph = ArrayGlyph(array)

# Plot the array
fig, ax, im, cbar = array_glyph.plot()

Display Cell Values

# Plot the array with cell values displayed
fig, ax, im, cbar = array_glyph.plot(display_cell_values=True)

Display Points

# Create some points to display on the array
points = np.array([[2, 3, 1], [5, 7, 2], [8, 1, 3]])

# Plot the array with points
fig, ax, im, cbar = array_glyph.plot(points=points)

Animation

import numpy as np
from cleopatra.array_glyph import ArrayGlyph

# Create a time series of arrays
time_series = [np.random.rand(10, 10) for _ in range(5)]
time_labels = ["t1", "t2", "t3", "t4", "t5"]

# Create an ArrayGlyph object with the first array
array_glyph = ArrayGlyph(time_series[0])

# Animate the array over time
anim = array_glyph.animate(time=time_labels, points=points)

# Save the animation
array_glyph.save_animation("animation.gif", fps=2)
